Честотен регулатор ATV610, 2.2 kW/3HP, 380...460 V, IP20 | Spark & Co
  • 3D
|

СКУ: ATV610U22N4

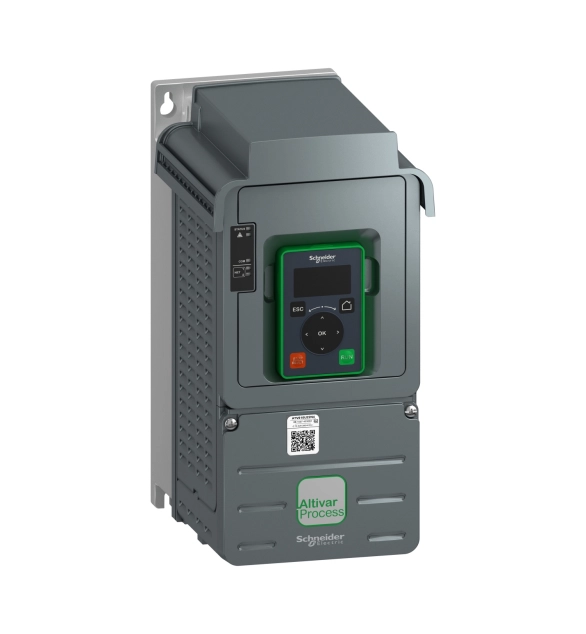

Честотен регулатор ATV610, 2.2 kW/3HP, 380...460 V, IP20

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Supporting protocol for other bus systems
    FALSE
  • With control element
    TRUE
  • With optical interface
    FALSE
  • Height
    297
  • Supporting protocol for Modbus
    TRUE
  • Number of HW-interfaces RS-485
    1
  • Width
    145
  • Number of analogue outputs
    2
  • Number of digital inputs
    6
  • With PC connection
    FALSE
  • Supporting protocol for BACnet
    FALSE
  • Type of converter
    EV009484
  • Max. output frequency
    500
  • Mains frequency
    EV008015
  • Number of phases input
    EV000069
  • Number of phases output
    EV000069
  • Relative symmetric net voltage tolerance
    10
  • Relative symmetric net frequency tolerance
    5
  • Integrated breaking resistance
    FALSE
  • Application in industrial area permitted
    TRUE
  • Application in domestic- and commercial area permitted
    TRUE
  • Max. output at quadratic load at rated output voltage
    2.2
  • Max. output at linear load at rated output voltage
    2.2
  • Mains voltage
    380
  • Number of analogue inputs
    3
  • 4-quadrant operation possible
    TRUE
  • Depth
    203
  • Nominal output current I2N
    5.6
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces serial TTY
  • Number of HW-interfaces USB
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces industrial Ethernet
  • Number of HW-interfaces RS-232
  • Number of HW-interfaces other
  • Number of digital outputs
  • Max. output voltage
    415

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous and synchronous motors. It works at a rated supply voltage from 380V to 460V AC. It is suitable for motors with power rating up to 2.2kW / 3hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 1.5kW / 2hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 2.4kg and its dimensions are, 145mm wide, 297mm high, and 203mm deep. This drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
