СКУ: 31301

SCHNEIDER ELECTRIC Connection adaptors, 3P, vertical

Brand
Schneider Electric
Lockable
TRUE
With axis extension
TRUE
With handle red/yellow
TRUE
With door interlock
FALSE

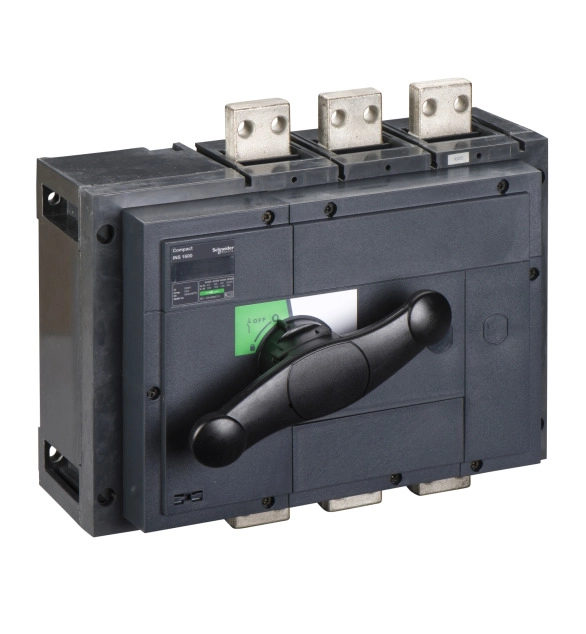

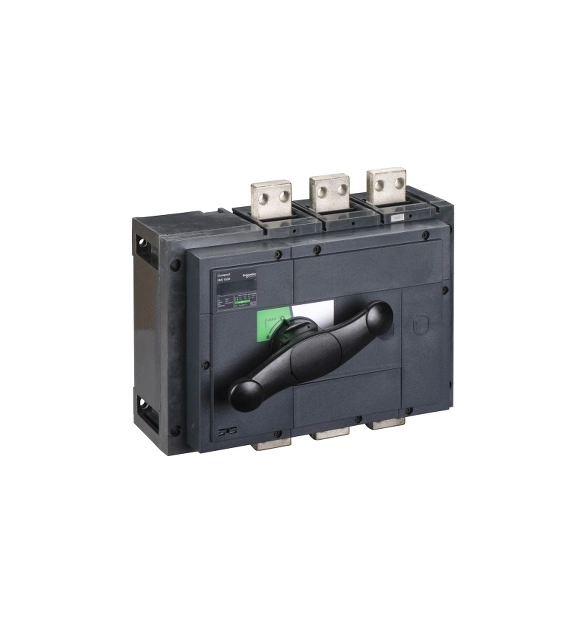

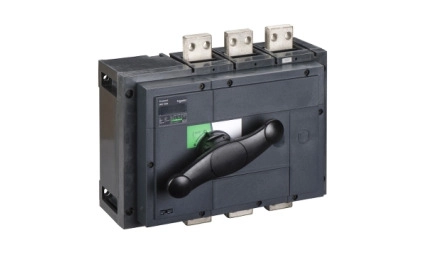

This Compact INS1600 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 1600A at 415VAC in categories AC21B and AC22B, 1250A at 415VAC in category and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS1600 is a class II insulation level front-face device as per IEC 60664 standard.
