СКУ: ZB4BVB1

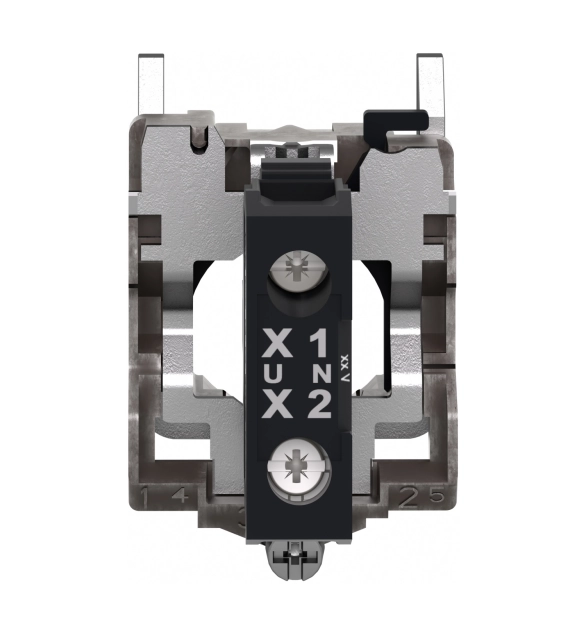

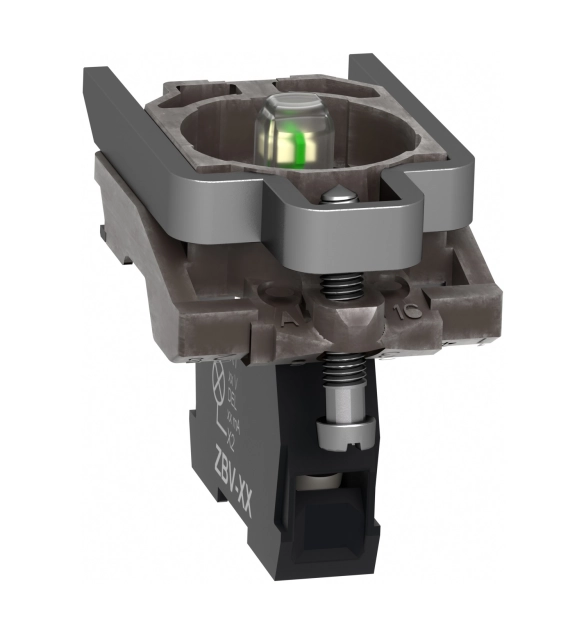

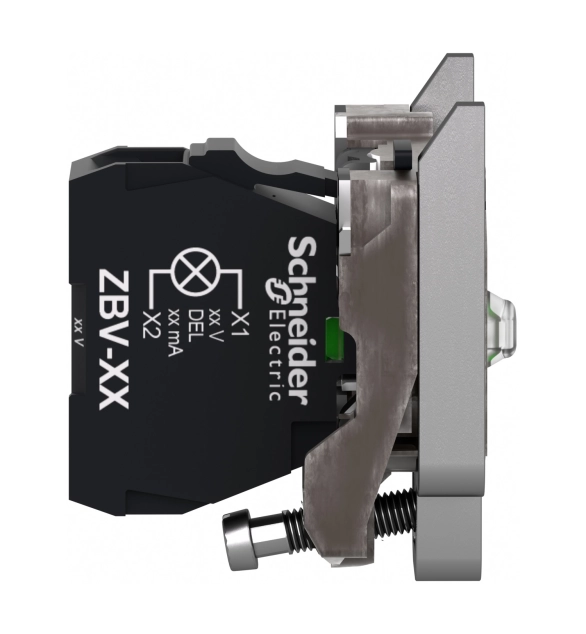

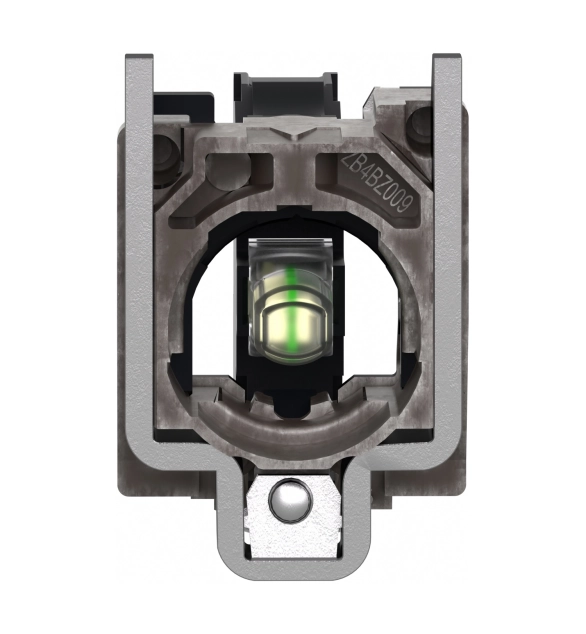

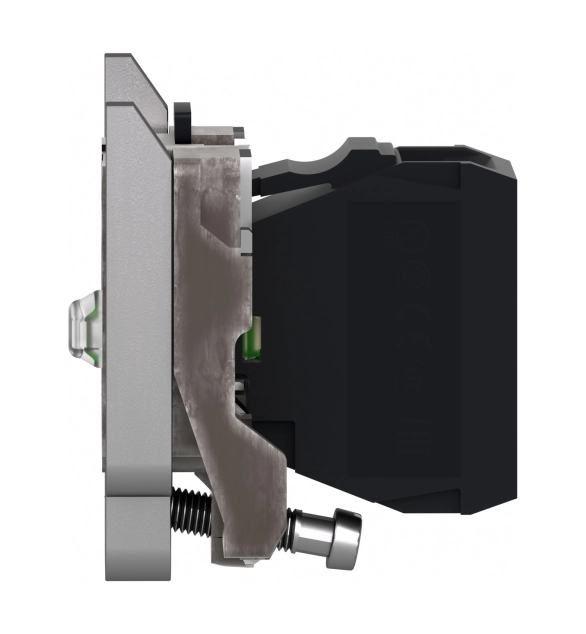

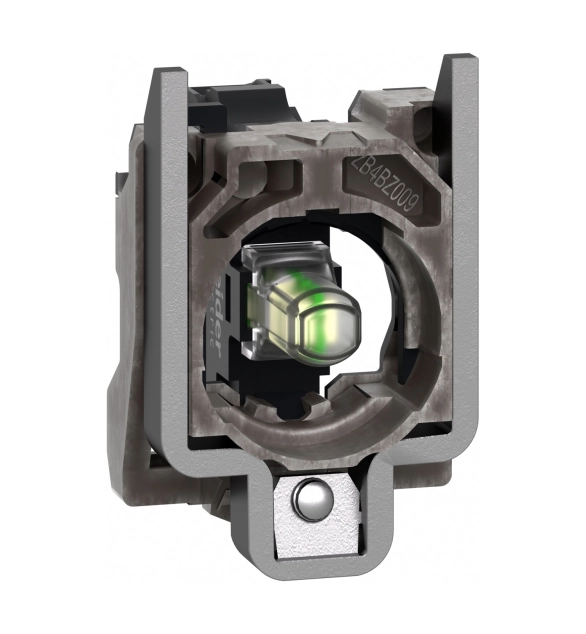

SCHNEIDER ELECTRIC Complete body light block assembly, metal, LED, body fixing collar, 24V AC/DC
-
Brand
Schneider Electric
-
Type of fastening
EV003964
-
Connection type auxiliary circuit
EV000415
-
With integrated voltage decreasing resistor
FALSE
-
Transformer integrated
FALSE
-
Voltage type for actuating
EV000509
-
With light source
TRUE
-
Lamp type
EV000432
-
With integrated diode
TRUE
-
Lamp holder
EV000154
-
Colour lamp
EV000202
-
Rated voltage Ue at AC 50 Hz
24
-
Rated voltage Ue at DC
24
-
Rated voltage Ue at AC 60 Hz
24
This Harmony XB4, light block with body/fixing collar is white, operates with a universal LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
