Reflex iC60H Ti24 25 A 2P крива C с интегриран контролер MCB | Spark & Co
  • 3D
|

СКУ: A9C65225

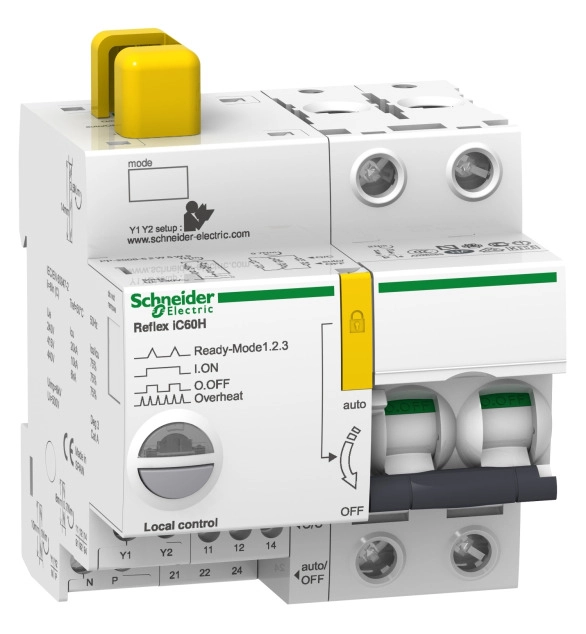

Reflex iC60H Ti24 25 A 2P крива C с интегриран контролер MCB

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Concurrently switching neutral conductor
    FALSE
  • Number of poles
    4
  • Frequency
    50
  • Over voltage category
    4
  • Pollution degree
    3
  • Rated current
    10
  • Release characteristic
    EV000413
  • Rated voltage
    415
  • Voltage type
    EV000460
  • Built-in depth
    44.5
  • Current limiting class
  • Additional equipment attached at delivery
    EV009771
  • Construction size (according to DIN 43880)
    3
  • Rated switch current auxiliary device
    1
  • Rated voltage auxiliary device
    230
  • Control voltage type auxiliary equipment
    EV000460
  • Width in number of modular spacings
    6.5
  • Rated short-circuit breaking capacity according to IEC 60947-2
    15

This Acti9 Reflex iC60H is a low voltage integrated control circuit breaker. It combines integrated circuit breaker protection and load control for lighting control applications. It has 4P with 4 protected poles, rated current 10A and C tripping curve. Y1/Y2 inputs remote control voltage is 230VAC and 1A. They allow local and remote control of lighting. Y3 input remote control voltage is 24VDC and 5.5mA. Y3 allow easy connection to a Power Logic Controller or a Building Management System. Breaking capacity at 230VAC is 30kA according to IEC 60947-2 . Breaking capacity at 400VAC is 15kA according to IEC 60974-2. Electrical endurance goes up to 30000 cycles for AC-1 or AC-7a. Electrical endurance goes up to 6000 cycles for AC-5a or AC-5b and AC-7c. It is possible to associate a vigi block to have a differential protection.
