СКУ: SR2B201FU

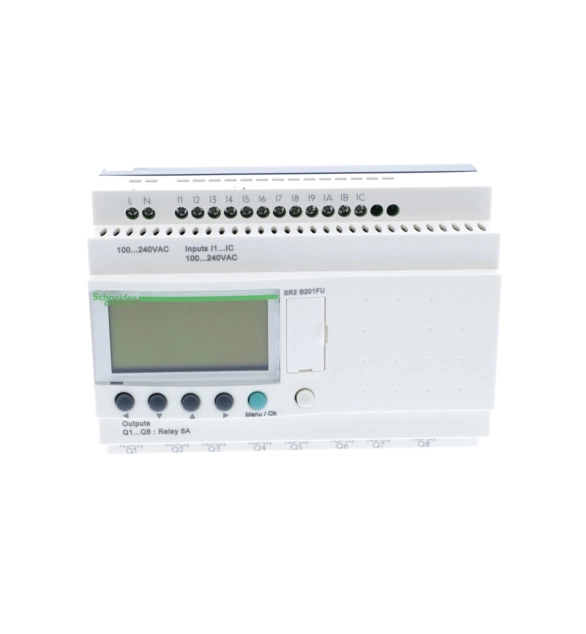

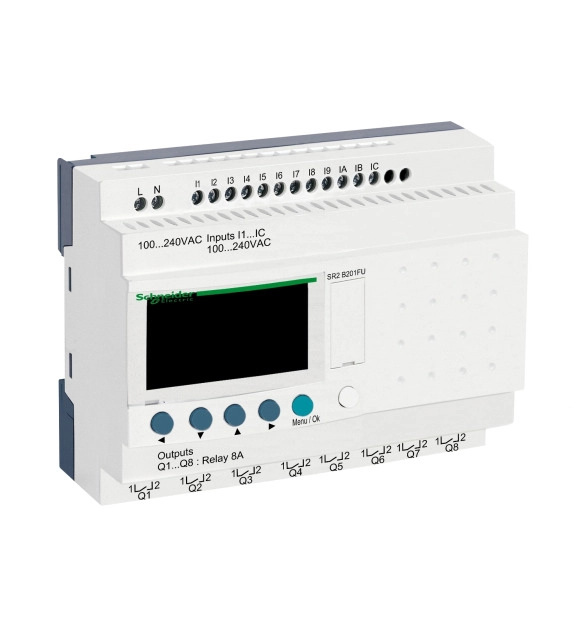

SCHNEIDER ELECTRIC Compact smart relay, Zelio Logic, 20 I/O, 100..240V AC, clock, display
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
With time switch clock
TRUE
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Height
90
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Modbus
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Rack-assembly possible
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
Width
71.2
-
Voltage type of supply voltage
EV000460
-
With optical interface
FALSE
-
With display
TRUE
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces Wireless
-
Number of HW-interfaces other
1
-
Number of HW-interfaces RS-422
-
Wall mounting/direct mounting
TRUE
-
Number of HW-interfaces RS-232
1
-
Number of HW-interfaces industrial Ethernet
-
Number of analogue inputs
-
Number of digital inputs
8
-
Number of analogue outputs
-
Number of HW-interfaces USB
-
Redundancy
FALSE
-
Number of HW-interfaces RS-485
-
Number of digital outputs
4
-
Expandable
FALSE
-
Basic device
TRUE
-
With relay output
TRUE
-
Depth
59.5
-
Expansion device
FALSE
-
Front built-in possible
TRUE
-
Switching current
8
-
Supply voltage AC 50 Hz
100
-
Supply voltage AC 60 Hz
100
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 196 I/O, 2 axis motion control. This logic controller provides 6 regular inputs, 4 fast inputs, 4 high speed inputs, 10 relay outputs. Its supply voltage is 100VAC to 240VAC, it embeds 1 serial link port (RS-485), and a USB port dedicated to programming. This controller is suitable at an affordable price, without compromising on simplicity, robustness, availability and services. It embeds a PID process control, PTO, PWM and PLS position control. It operates in a voltage range of 85 to 264V AC (50/60 Hz, including ripple), and its maximum consumption varies from 61 to 74V AC. It measures 130mm wide x 70mm deep x 90mm high, and weighs 0.405kg. Ideal for textile, packaging, HVAC, material handling, pumping, hoisting, and assembly applications. It is certified by CE, CSA, IACS E10, RCM, and CULus, and meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It is compatible with optional cartridges for digital and analog I/O expansion, as well as Serial Link communication ports. It is delivered in 1 package (PCE type). It is mounted on a DIN rail. Easy Modicon M200 controllers deliver affordable, entry-level solutions tailored to meet the specific needs of emerging markets, without compromising quality. Easy Modicon M200 is the smart choice for small automation systems.
