СКУ: PMEPXM0100H

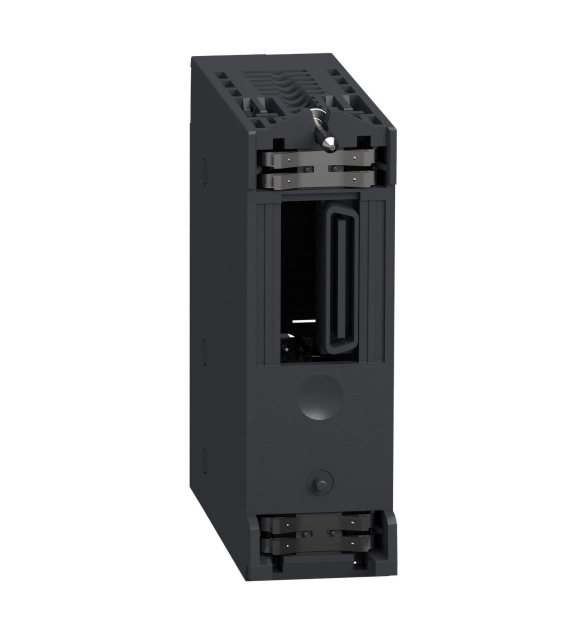

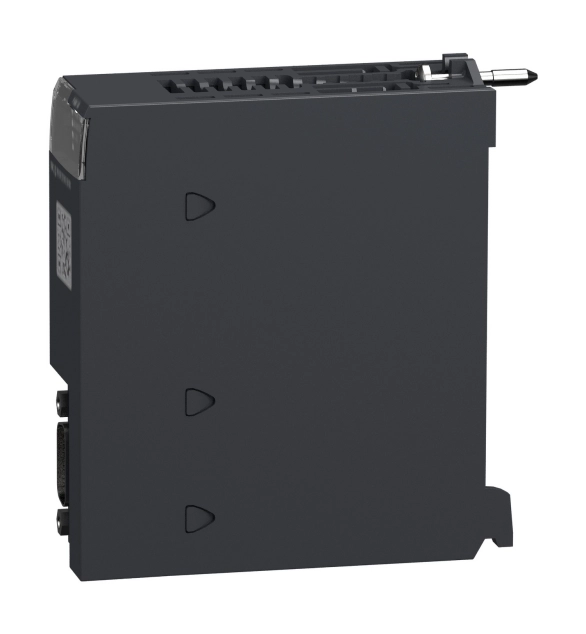

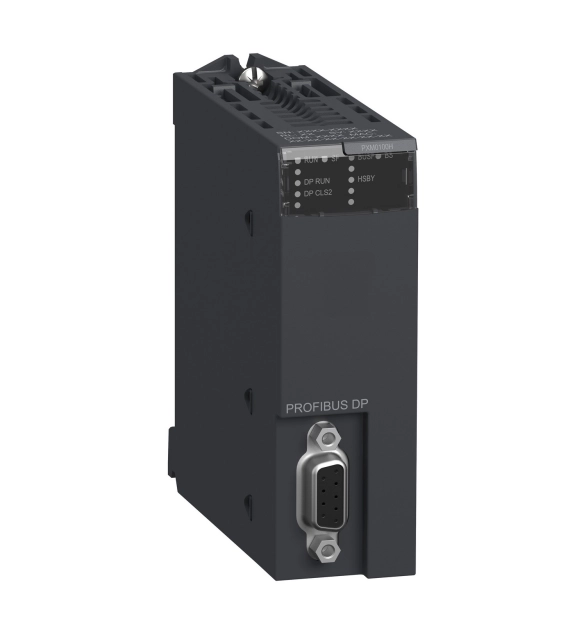

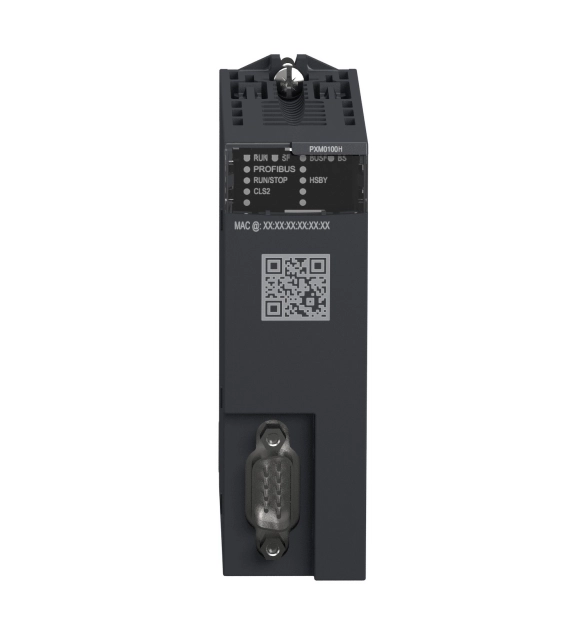

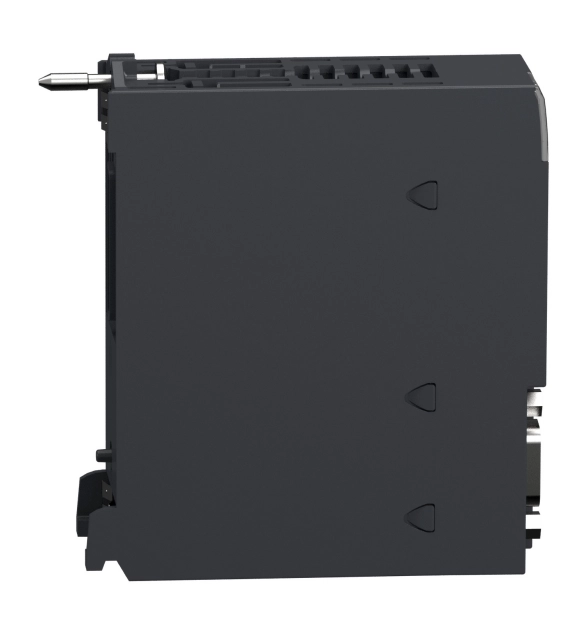

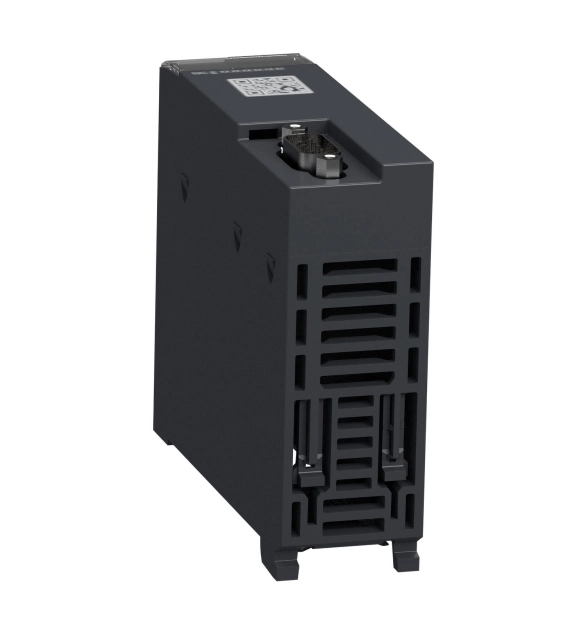

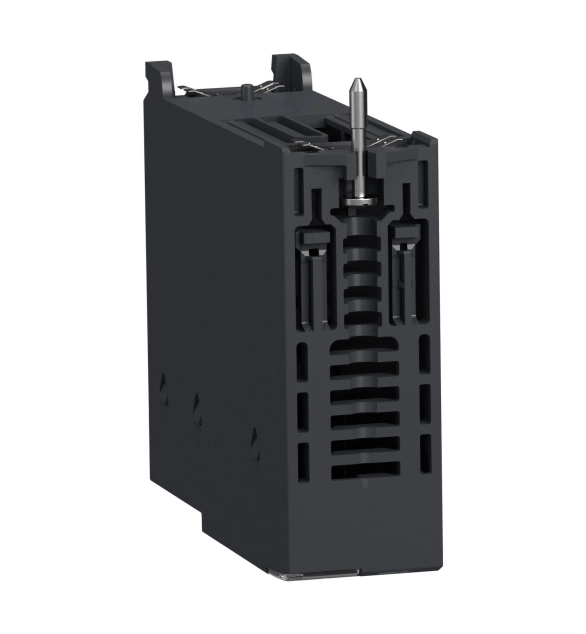

SCHNEIDER ELECTRIC Communication module Modicon M580 Profibus DP Master, for severe environments
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Modbus
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Supporting protocol for other bus systems
FALSE
-
Width
173
-
With optical interface
FALSE
-
Number of HW-interfaces industrial Ethernet
1
-
With potential separation
FALSE
-
Redundancy
FALSE
-
Height
94
-
Depth
217
-
Type of data transmission
EV000154
-
Supporting protocol for PROFIBUS
TRUE
-
Transmission rate
9.6
-
Supporting protocol for Foundation Fieldbus
TRUE
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces USB
-
Number of HW-interfaces Wireless
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-485
-
Number of HW-interfaces RS-232
-
Number of HW-interfaces other
This communication module is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC)and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Profibus communication module is equipped with 1 SUB-D 9-pin female for Profibus DP. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Its casing provides IP20 protection of the electronics. This module has a weight of 0.270kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, UKCA and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This product is compatible with Modicon M580 processor. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
