SCHNEIDER ELECTRIC Circuit breaker 1P+N, 10A, C, HS code: 85362010, COO: FR, 0.12kg /PO:40855456/

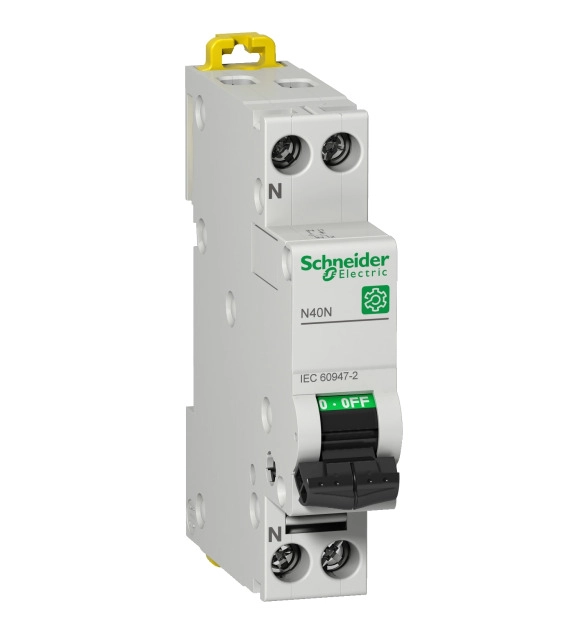

This Multi9 N40N product is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole, 10A rated current, and a C tripping curve. The rated short circuit breaking capacity is up to 10kA at 240VAC, conforming to EN/IEC 60947-2 standard. This product complies with industrial standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing and protecting equipment from electrical threats. This product protects against short-circuit and overload currents. Its fast closing mechanism, overvoltage resistance, and high performance limitation improve its service life. This product is dedicated to original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The rated operational voltage is 240VAC with an operating frequency of 50Hz to 60Hz. The rated insulation voltage is 500VAC, and the rated impulse withstand voltage is 4kV. It can be clipped on a DIN rail, and its width is 2 pitches of 9mm. The pollution degree is 3. The dimensions are (W) 18mm x (H) 81mm x (D) 78mm. The product colour is light grey (RAL 7035). The weight is 0.115kg. It has an IP20 degree of protection on its terminals. The operating temperature is from -25°C to 70°C. The storage temperature is from -40°C to 70°C.
