СКУ: LC1E120Q5

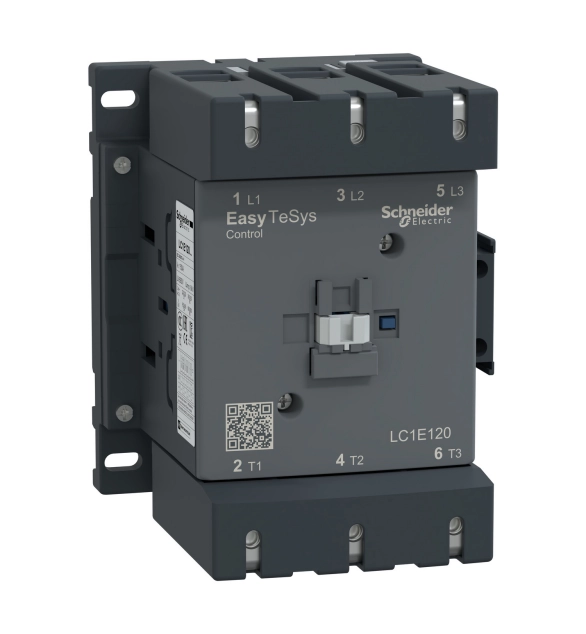

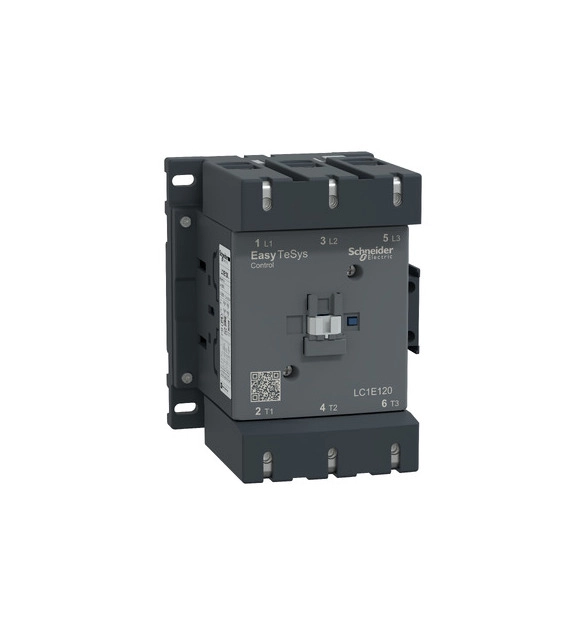

Контактор Easy TeSys Control 3P(3 NO) - AC-3 - <= 440 V 120A - 380 V AC бобина
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
220
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
FALSE
-
Rated operation power at AC-3, 400 V
55
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
150
-
Rated operation current Ie at AC-3, 400 V
120
Easy TeSys Control contactor 3 poles for motor applications up to 120A 59kW/440V. It provides a 220V 50Hz AC coil, 1NO+1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 120mm width for standard. It provides standard reliability and durability with 0.8 Mcycles electrical durability AC-3 and 4 Mcycles mechanical durability. Operating rates up to 1200 cycles per hour. It can cover -5°C to 55°C working temperature and mounted by DIN-rail. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
