СКУ: EVP1CNX32122
SCHNEIDER ELECTRIC Charging cable, EVlink, 10m., 32A, 1-Phase, T2 connector at each end of cable
-
Brand
Schneider Electric
-
Nominal voltage
240
-
Type of current
EV011498
-
Surface treatment contacts
EV003715
-
Contact material
EV000154
-
Nominal current
32
-
Number of communication conductors
1
-
Type infrastructure side
EV011501
-
Type vehicle side
EV011501
-
Cable type
EV000164
-
With Incable Control Box (ICCB)
FALSE
-
Charging mode
EV011148
-
With temperature sensor
FALSE
-
Cable length
10

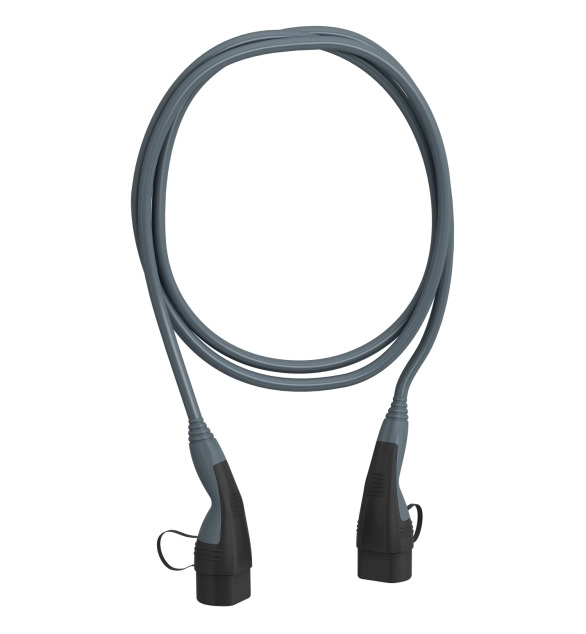

This EVlink cabling accessory is a single-phase charging cable allowing to connect to an electric vehicle. It can provide a In rated current of 32A on a Us rated supply voltage of 220VAC up to 240VAC. The frequency is 50Hz to 60Hz. The cable length is 10m. At charging station end, as well as at vehicle end, the cable has T2 connector with silver plated contacts limiting overheating. The IP degree of protection is IP44. The IK degree of protection is IK10. The operating temperature is between -30°C to 50°C. The storage temperature is between -40°C to 80°C.
