SCHNEIDER ELECTRIC Capacitor Contactor 60KVAR, 230VAC, HS code:85364900, COO:CZ, 1.7kg /PO:40401618/ | Spark & Co
  • 3D
|

СКУ: LC1DWK12P7

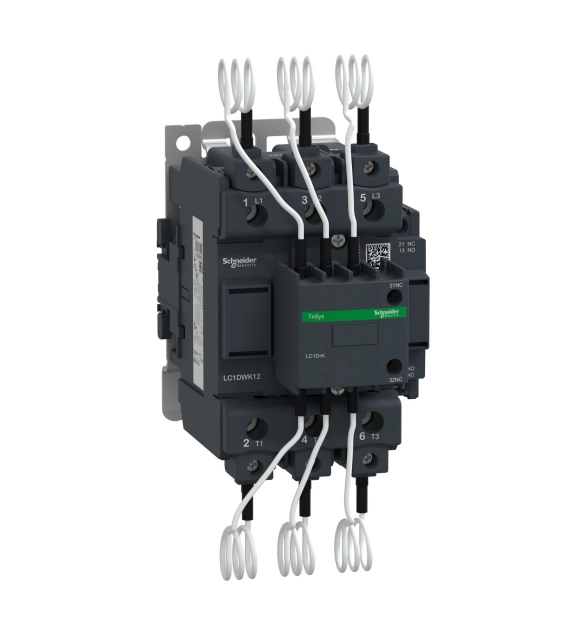

SCHNEIDER ELECTRIC Capacitor Contactor 60KVAR, 230VAC, HS code:85364900, COO:CZ, 1.7kg /PO:40401618/

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    220
  • Rated control supply voltage Us at AC 60HZ
    220
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
  • Rated operation power at AC-3, 400 V
    2.2
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    20
  • Rated operation current Ie at AC-3, 400 V
    6

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR/400/415V 50Hz (104kVAR/690V). It provides a 230V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 100 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831.
