SCHNEIDER ELECTRIC Circuit breaker Easypact EZC630N - TMD, 600A, 3P 3d | Spark & Co
  • 3D
|

СКУ: EZC630N3600N

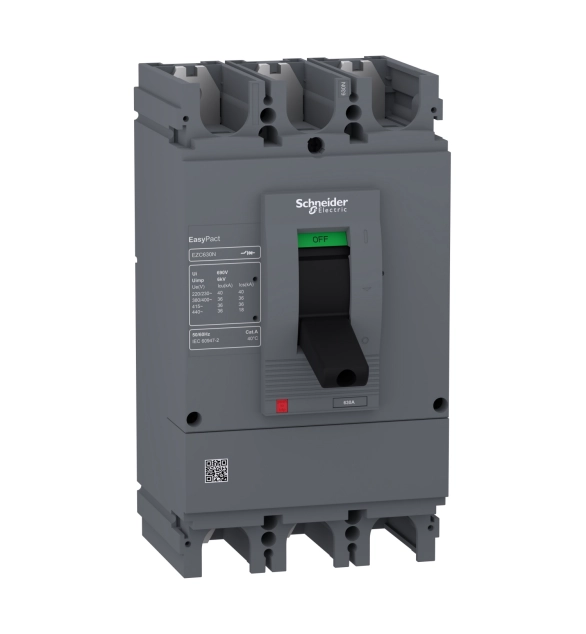

SCHNEIDER ELECTRIC Circuit breaker Easypact EZC630N - TMD, 600A, 3P 3d

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Degree of protection (IP)
    EV006405
  • Number of poles
    4
  • Rated permanent current Iu
    630
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50
  • Number of auxiliary contacts as change-over contact
    5
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Rated voltage
    220
  • Complete device with protection unit
    TRUE
  • Adjustment range undelayed short-circuit release
    6000

The under voltage release(UVRN) as the part of remote tripping is used for EasyPact EZC(V)250 circuit breakers. This UVRN is working at 200VAC voltage(Un), 50/60Hz. Tripping threshold is between 0.35 and 0.7times the related voltage. This release trips the circuit breaker when control voltage drops below a tripping threshold. Circuit breaker closing is possible only if the voltage exceeds 0.85 times the related voltage. This UVRN is internal mounting.
