СКУ: VW3A7731

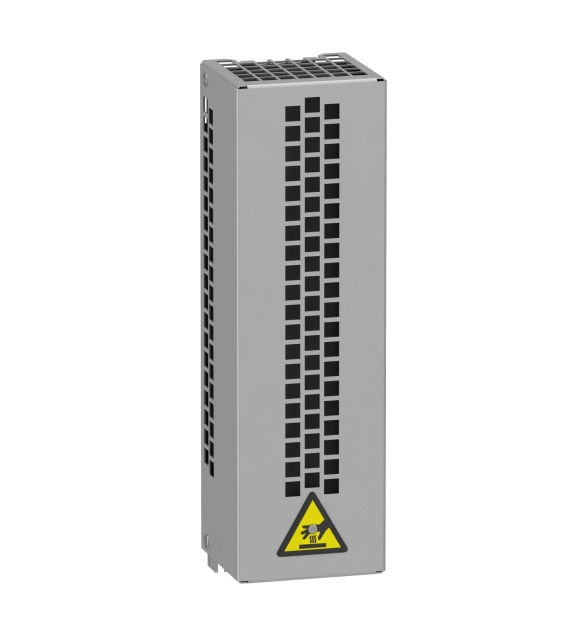

SCHNEIDER ELECTRIC Braking resistor, 60 ohms, 0.16 kW, IP20

Brand
Schneider Electric
Accessory
TRUE
Spare part
FALSE
Type of accessory/spare part
EV008556

This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 60Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.16kW at 50°c. It weighs 2kg and its dimensions are, 105mm wide, 345mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.
