СКУ: MTN6003-0012

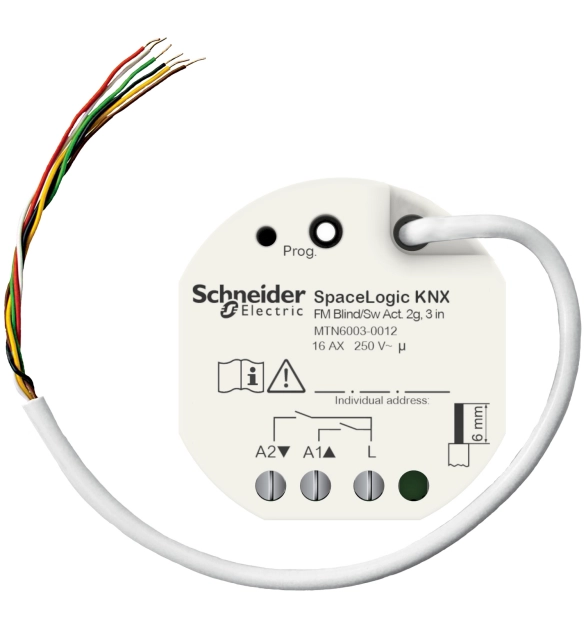

SCHNEIDER ELECTRIC Blind/switch actuator, SpaceLogic KNX, 2 gang, 3 binary inputs, KNX Secure

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Min. depth of built-in installation box
    40
  • With LED indication
    TRUE
  • Bus system KNX radio
    FALSE
  • Bus system Powernet
    FALSE
  • Mounting method
    EV009726
  • Bus system LON
    FALSE
  • Bus system radio frequent
    FALSE
  • Other bus systems
    EV000494
  • Radio frequent bidirectional
    FALSE
  • With bus connection
    TRUE
  • Type of current
    EV000460
  • Bus system KNX
    TRUE
  • Bus module detachable
    FALSE
  • With switch function
    TRUE
  • Local operation/hand operation
    FALSE
  • Max. switching power
    2500
  • Number of inputs
    3
  • Max. number of venetian-blind outputs
    2
  • Switching current (resistive)
    16

This Schneider Electric Space.Logic KNX device is a blind switch actuator operating by KNX bus system. Its matching mounting box can be recessed into the surface of the wall with flush type. 2 is the number of ouputs and the input function is operating by signal voltage (SELV). In addition, the rated operational voltage of this device is 230V. The IP rating of this device is IP20. Its rated current is 3. This blind switch actuator is SVHC (substances of very high concern) free. This blind switch actuator is mounted by flush. Schneider Electric blind switch actuator is mercury free.
