СКУ: A9A26917

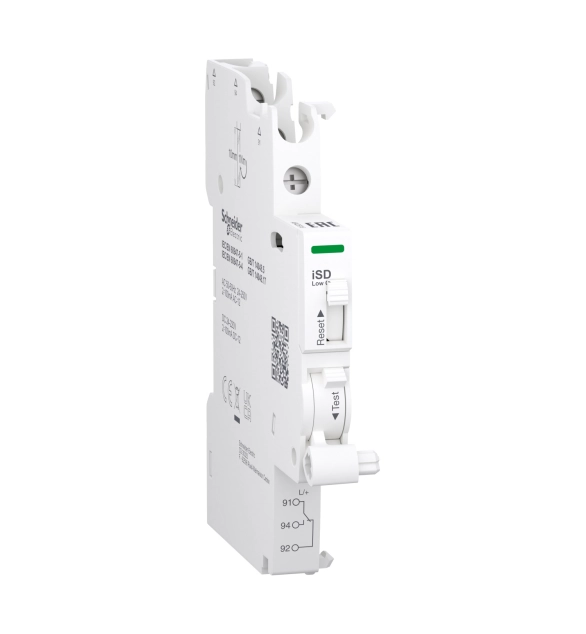

SCHNEIDER ELECTRIC Auxiliary contact, Acti9 A9A, iSD, 1C/O, 2-100mA, 24-250VAC, 24-220VDC

  • Brand
    Schneider Electric
  • Rated voltage
    240
  • With auto test for earth leakage function
    FALSE
  • Width in number of modular spacings
    0.5
  • Suitable for max. number of poles main contact unit (total)
    4
  • Number of fault-signal switches
    1
  • Voltage type for actuating
    EV000509
  • Installed at the factory
    FALSE
  • Number of contacts as change-over contact
    2
  • Number of contacts as normally closed contact
  • Number of contacts as normally open contact
  • Device fitting
    EV009775
  • Additional equipment
    EV009833
  • Suitable for max. current main contact unit
    63
  • Rated switch current
    0.1

This Acti9 iCT is a modular contactor. It is a 2P remote control device with 2 normally open contact. The In rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC to 240VAC. This device could be used for control circuits. It is compatible with all the Acti9 control auxiliaries, for heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching operations is 100 per day. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 18mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
