ISFL400 direct 185mm шинопровод, винтове M12 - товаров прекъсвач с предпазител | Spark & Co
  • 3D
|

СКУ: LV480857

ISFL400 direct 185mm шинопровод, винтове M12 - товаров прекъсвач с предпазител

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Version as emergency stop installation
    FALSE
  • Max. rated operation voltage Ue AC
    690
  • Number of poles
    3
  • Degree of protection (IP), front side
    EV006405
  • Motor drive integrated
    FALSE
  • Suitable for floor mounting
    FALSE
  • Motor drive optional
    FALSE
  • Version as main switch
    TRUE
  • Rated permanent current Iu
    400
  • Cable entry
    EV000154
  • Suitable for busbar mounting
    TRUE
  • Type of control element
    EV000154
  • Version as safety switch
    TRUE
  • Position control element
    EV007926
  • Suitable for fuses
    EV003994
  • Suitable for front mounting
    TRUE
  • Equipped with connectors
    TRUE
  • With error protection
    TRUE
  • Conditioned rated short-circuit current Iq
    120
  • Rated short-time withstand current lcw
    15

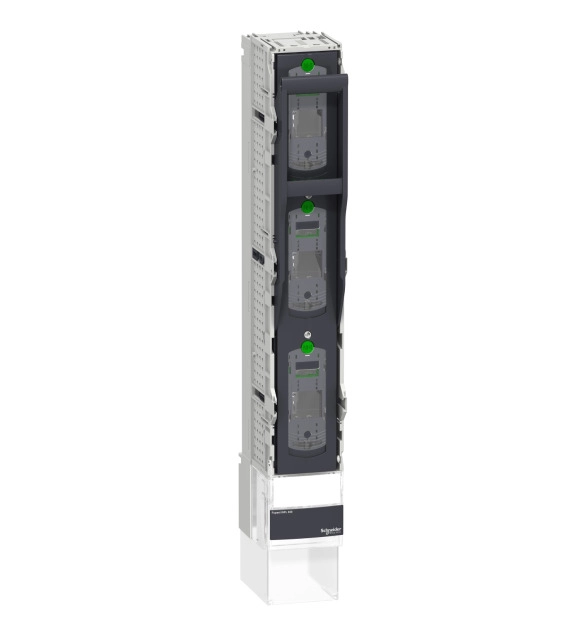

This device FuPacT ISFL400 is a 3 poles fuse switch disconnector for direct connection to 185mm busbars. FuPacT ISFL is an efficient vertical fuse switch disconnectors with compact form and a modular system. Thanks to its size, FuPacT ISFL doesn't require extra space for current transformer installation. Its interface is standardized for all types of measurement devices. The rated operational current is 400A at 690VAC for AC21B utilisation category, 400A at 500VAC for AC22B, and 400A at 415VAC for AC23B. Fuse link type is DIN NH02. The power circuit is connected either directly to the 185 mm busbars or using a hook-on connection. It complies with IEC 60947-1 and IEC 60947-3 standards.
