SCHNEIDER ELECTRIC Anti Harmonic detuned reactor 25kvar 190Hz (3.8) 7% 50Hz 400V | Spark & Co
  • 3D
|

СКУ: LVR07250A40T

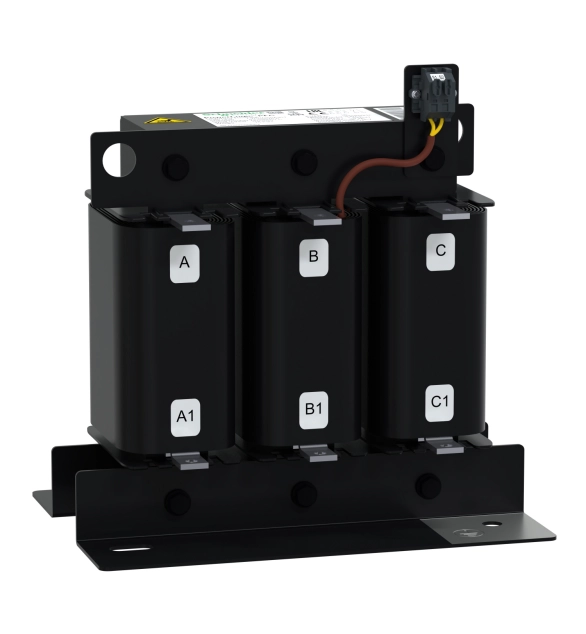

SCHNEIDER ELECTRIC Anti Harmonic detuned reactor 25kvar 190Hz (3.8) 7% 50Hz 400V

  • Brand
    Schneider Electric
  • Max. rated operation voltage Ue
    690
  • Rated operation frequency
    50
  • Degree of protection (IP)
    EV006404
  • Number of poles, primary side
    3
  • Filtering factor
    7
  • Filter bank performance
    50
  • Rated current at AC
    41.83
  • Max. rated current (Ith) at rated voltage AC
    47

The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 100 kVar output power with 2.7/135 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 14 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 350mm in height, 350mm in width and 220mm in depth. For a product weight of 55 kg.
