Контактор TeSys D- 4P(2NO+2NC)- AC-1 <= 440 V 125 A 48 V AC 50/60 Hz, бобина | Spark & Co
  • 3D
|

СКУ: LC1D80008E7

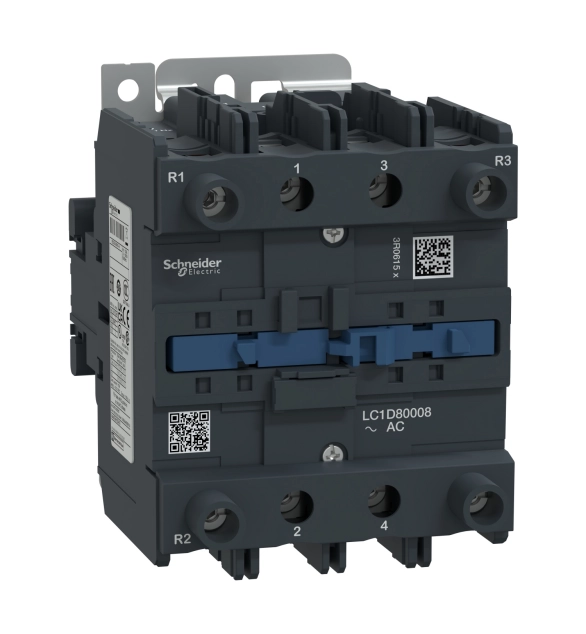

Контактор TeSys D- 4P(2NO+2NC)- AC-1 <= 440 V 125 A 48 V AC 50/60 Hz, бобина

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    48
  • Rated control supply voltage Us at AC 60HZ
    48
  • Modular version
    FALSE
  • Rated operation current Ie at AC-1, 400 V
    125
  • Number of normally closed contacts as main contact
    2
  • Number of normally open contacts as main contact
    2
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact

TeSys Deca contactor, 4-pole (2NO+2NC), for non-inductive load applications up to 125A/690V AC-1. It provides a 48V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
