SCHNEIDER ELECTRIC Acti9 comb busbar - 3L+N balanced, 18mm pitch, 18 modules, 100A | Spark & Co
  • 3D
|

СКУ: A9XPH518

SCHNEIDER ELECTRIC Acti9 comb busbar - 3L+N balanced, 18mm pitch, 18 modules, 100A

  • Brand
    Schneider Electric
  • Colour
    EV000202
  • Width in number of modular spacings
    18
  • Insulated
    TRUE
  • Cross section
    16
  • Type of electric connection
    EV000158
  • Suitable for devices with N-conductor
    TRUE
  • Number of phases
    3
  • Number of poles
    4
  • Rated permanent current Iu
    100
  • Suitable for devices with auxiliary switch
    TRUE
  • Module width
    18
  • Max. rated operation voltage Ue
    415
  • Length
    324
  • Suitable for number of devices
    9

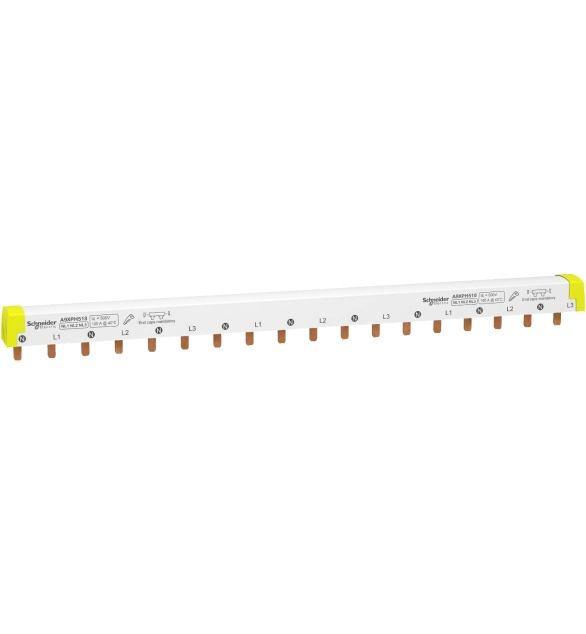

This Acti9 connection accessory is a horizontal insulated cuttable comb busbar. It has a width of 18 modules of 18mm. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1), (N, L2), (N, L3). It is suitable for 9 devices with a 1P+N pole description. The distance between way is 36mm.
