СКУ: XB5AW35G5

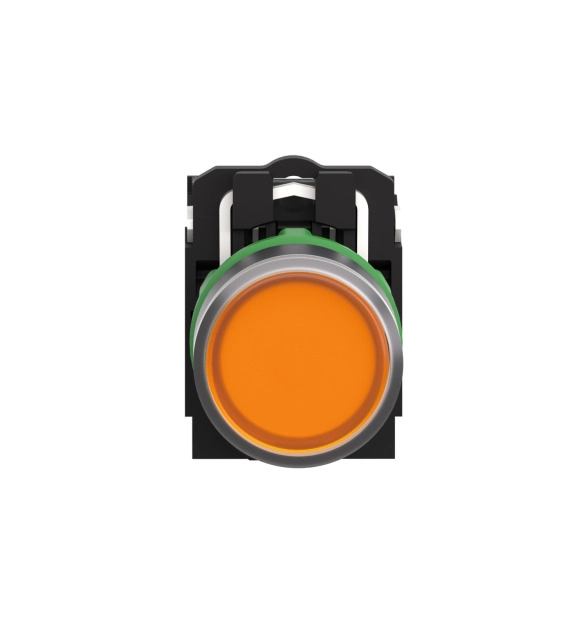

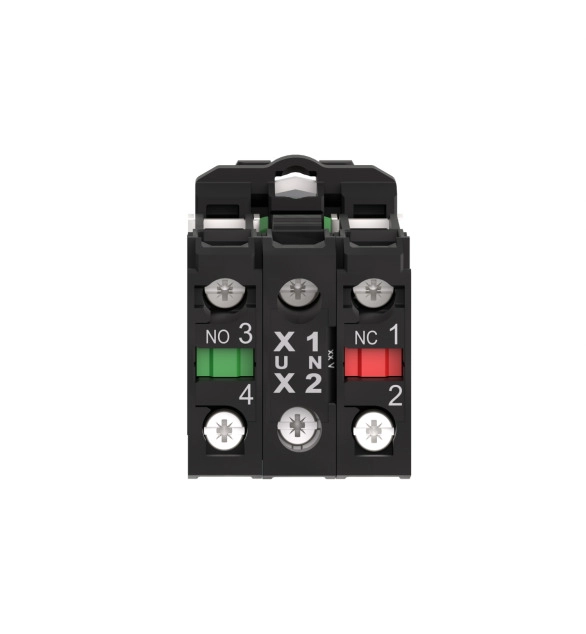

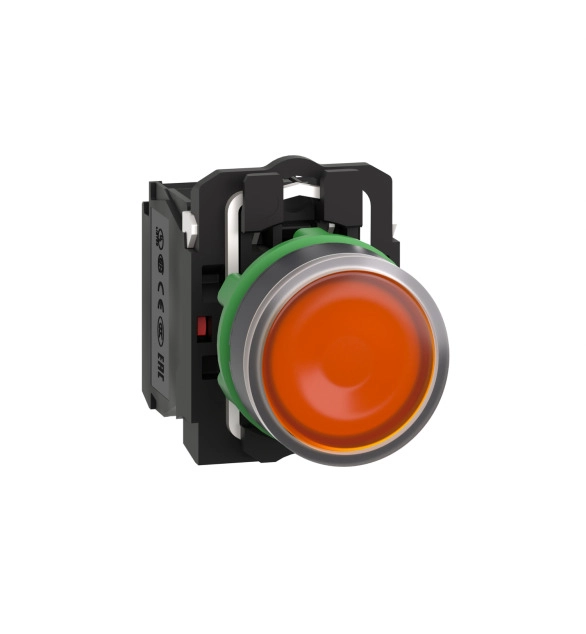

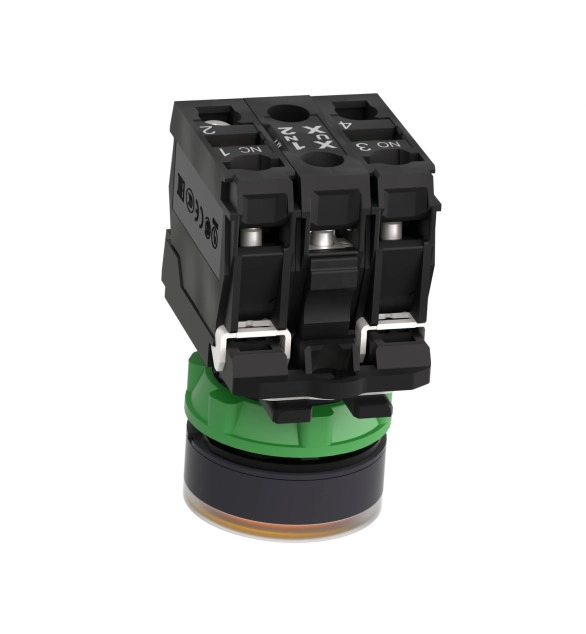

SCHNEIDER ELECTRIC Illuminated push button, plastic, orange flush, 22mm, LED, 1NO+1NC, 110-120VAC
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Number of contacts as normally closed contact
1
-
Hole diameter
22.5
-
Material front ring
EV000139
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Colour front ring
EV000206
-
Switching function latching
FALSE
-
Degree of protection (NEMA)
EV000154
-
Degree of protection (IP)
EV006422
-
Number of command positions
1
-
Spring-return
TRUE
-
Type of button
EV000880
-
Suitable for illumination
TRUE
-
Colour button
EV000236
-
Supply voltage lamp
120
-
Number of contacts as change-over contact
This Harmony XB5, illuminated modular orange push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
