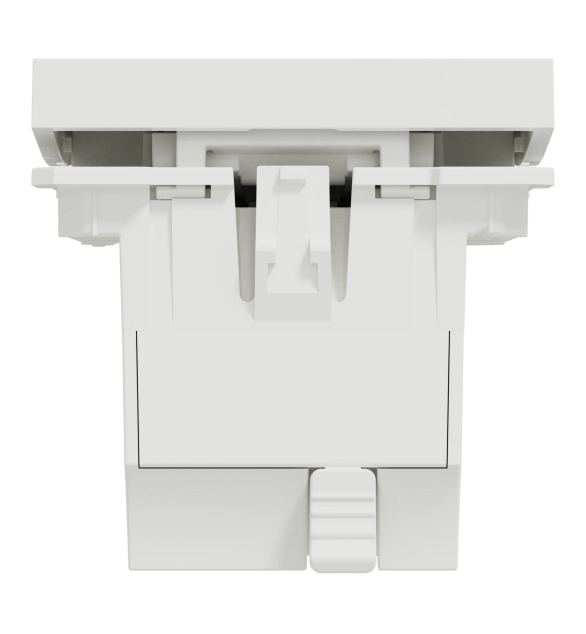

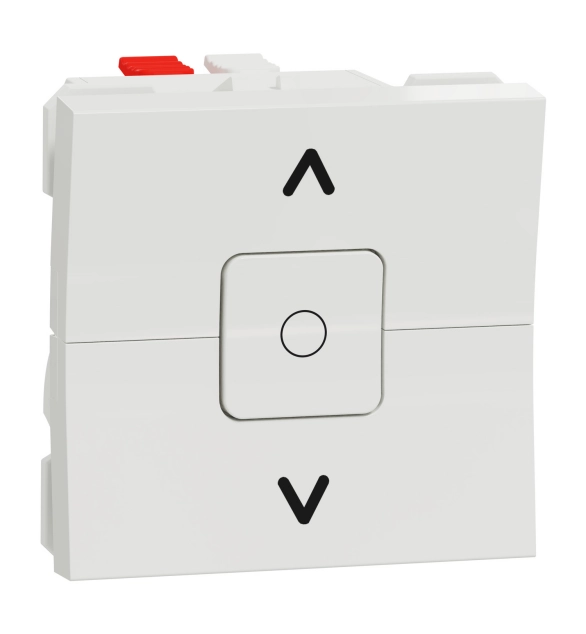

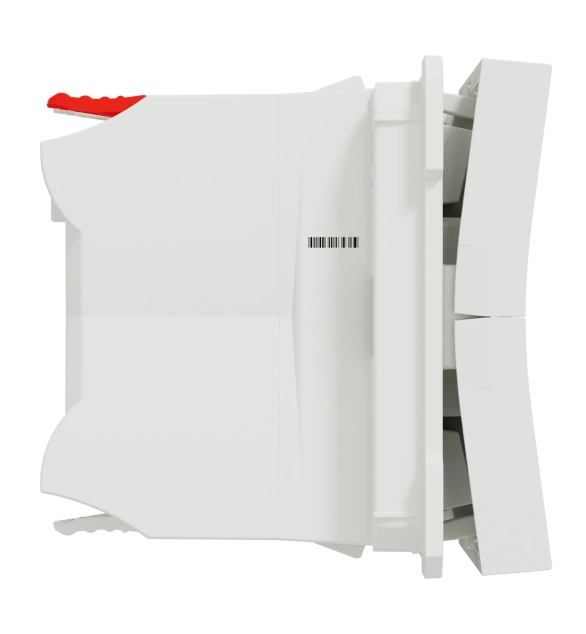

SCHNEIDER ELECTRIC 3 Shutter control, New Unica, 3 positions, 6A, 2M, untreated, IP4X, white

Elevate your space with the Schneider Electric New Unica Shutter Control, a stylish and efficient solution for seamless shutter management. The screwless terminals facilitate hassle-free installation It is 45 mm in width, 45 mm in height, 44.35 mm in depth, with an embedding depth of 32.8 mm, and the product weighs 0.0335 kg. It has 2 modules and includes a pilot light, but does not feature an LED. This shutter control features both rocker and push-button actuators for flexible user interface options. It obtained AENOR, CE, EAC, NF certificate as well. Being made of Cu. Zn15, PBT (polybutylene terephthalate) GF30, PC (polycarbonate) GF10 FR, thermoplastic ABS-UV stabilised material, this roller blind switch is quite reliable and resistant. Besides, it reaches IK04 protection level, which can help protect against impact. What's more, it well satisfied the standard of IEC 60669-1, LV directive, Ro. HS compliant. Also, it is environment-friendly, with UV resistant, acetone, alcohol, ammonia, bleach, liquid soap, oil, petrol, window-cleaning fluid reached. The dielectric strength level, namely the voltage that the material this roller blind switch uses can withstand for a given wall thickness before dielectric breakdown or electrical discharge, is 2000 V. The Ue-rated operating voltage is 250VAC. The rated current for the switch is 6A. The color of the device is white, and it has a glossy surface finish. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. The product complies with the IEC 60669-1,LV directive standard and has CE, AENOR, EAC, NF, VDE certifications. The device features a clip-in mount for easy installation. The dimensions of the product are (W) 45mm x (H) 45mm x (D) 44.35mm. Its embedding depth is 32.8mm. It has an IP4X and IK04 degrees of protection. The operating temperature is from -5°C to 40°C. New Unica is a modular range that offers a wide variety of products and functions with a sleek and timeless aesthetic that integrate well with other installations. It is designed with clever features to be flexible, easy to understand and quick to install, providing convenient solutions for customer requirements.
