СКУ: NSYDLM24

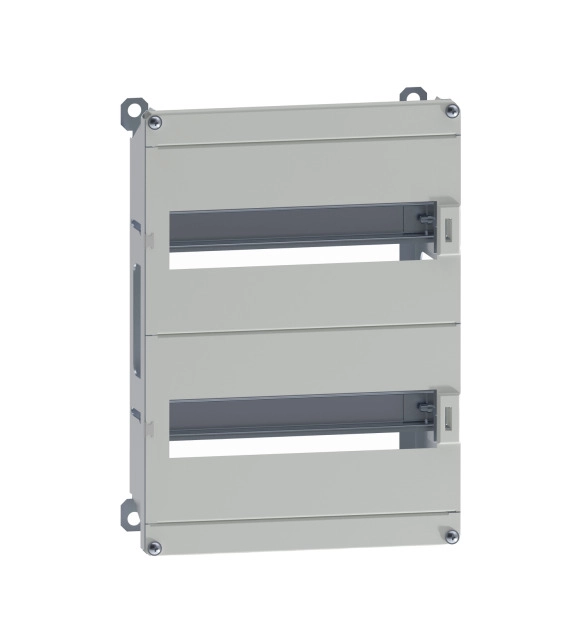

Шаси Modular chassis 24m H400xW300
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Type of cover
EV009916
-
With cover
TRUE
-
Depth
101.5
-
Height
353
-
With N-PE clamp
TRUE
-
Number of DIN-rails
2
-
Width
255
-
Number of modular spacings per DIN-rail
12
DLM chassis for PanelSeT S3D, PanelSeT S3X and PanelSeT CRN enclosures The chassis is to be fixed on front of enclosure and step slide by fixing elements and back with supports location The width is 255mm The height is 353mm The depth is 101,5mm Number of 18mm modules is 24 (1 module = 2 steps = 18 mm) Number of horizontal rows is 2 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The product is made from grey steel (RAL 7035) The front has a grey (RAL 7035) color Number of cut-outs is 2 The kit is made up of 1 chassis structure, 2 finish covers, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 2 front panels with 35mm DIN rails Anti-corrosion protection is ensured by an polyester powder coating
