СКУ: RPM32B7

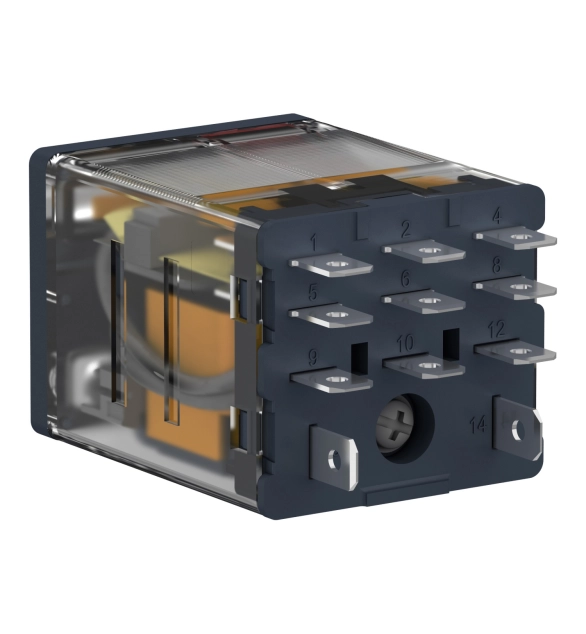

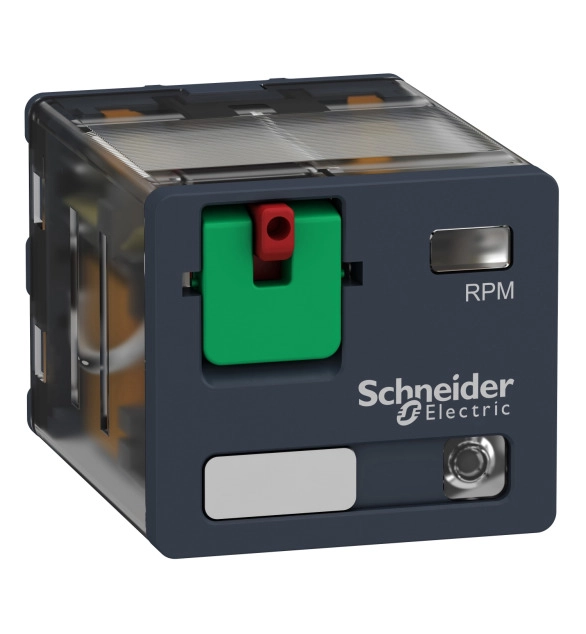

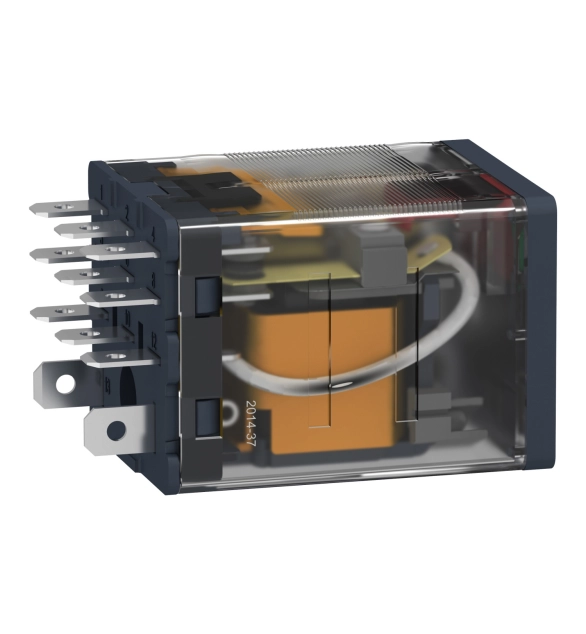

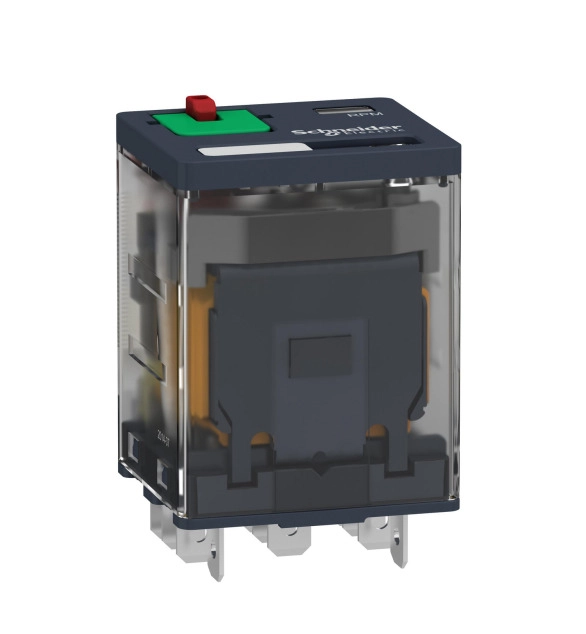

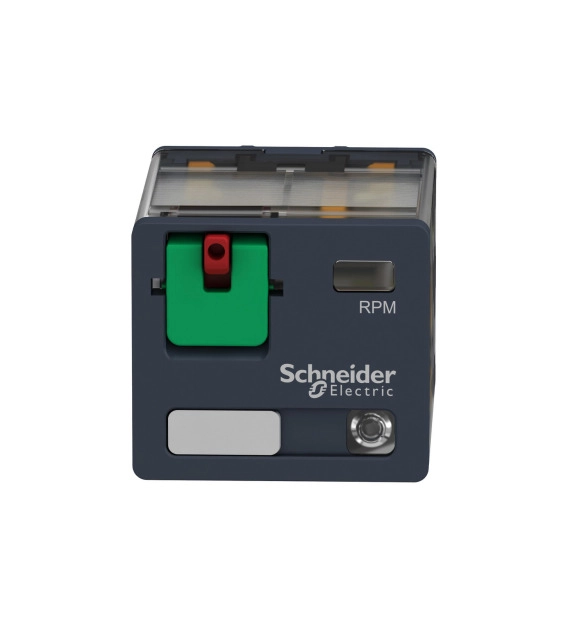

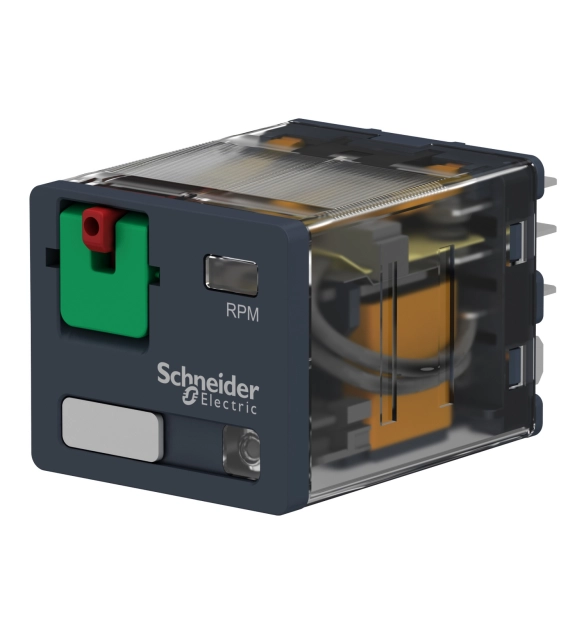

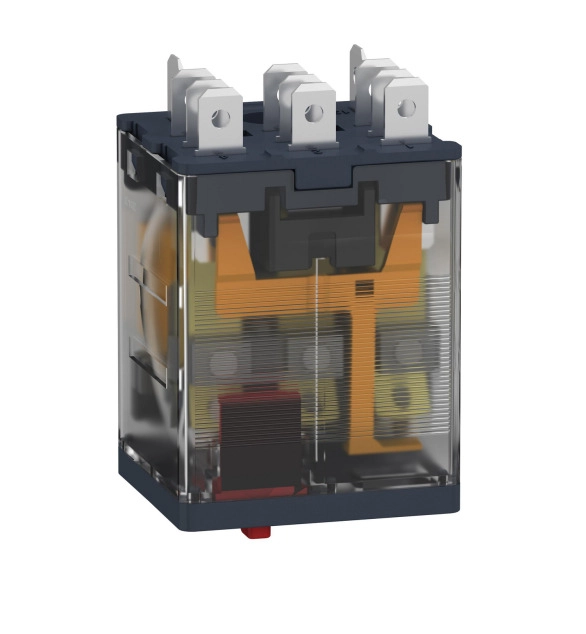

Power relay 15A 3CO lock LED 24V AC

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000460
  • Degree of protection (IP)
    EV006415
  • Rated control supply voltage Us at AC 50HZ
    24
  • Rated control supply voltage Us at AC 60HZ
    24
  • With LED indication
    TRUE
  • Depth
    53
  • With detachable clamps
    TRUE
  • Drive, switching attitude
    EV005821
  • With forced-guided contacts
    TRUE
  • Drive, polarization
    EV005820
  • Complete with socket
    FALSE
  • Material of contact insert
    EV000154
  • Material of contact surface
    EV000154
  • Material contact
    EV000154
  • Type of electric connection
    EV000414
  • Nominal current
    15
  • Height
    27
  • Type of switch contact
    EV000154
  • Width
    31
  • Number of contacts as change-over contact
    3
  • Number of contacts as normally open contact
  • Number of contacts as normally closed contact

It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.
