СКУ: NSYCR10WU2C

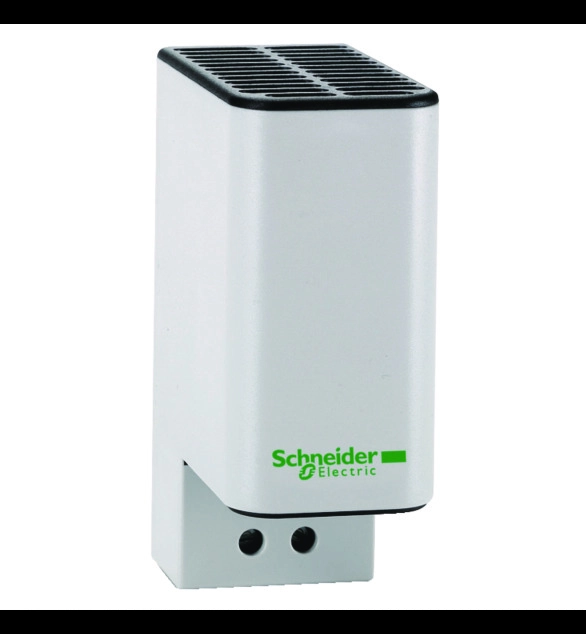

Резистивен изолиран нагревател 10W 110-250V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Voltage type
EV000460
-
Degree of protection (NEMA)
EV000599
-
Width
38
-
Depth
75
-
Operating voltage at AC 50 Hz
110
-
Operating voltage at AC 60 Hz
110
-
With room temperature controller
FALSE
-
With fan
FALSE
-
Continuous heating power at 10 °C
10
-
Rated power
10
-
Height
98
Resistance heater 10W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 38mm, height is 98mm and depth is 75mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure Conforms with VDE and UL certification An electrical protection device must be installed on the supply side of the unit The 2 screw terminals 2,5 mm² are used for electrical connection Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with VDE and UL certification Conforms class II electrical insulation class
