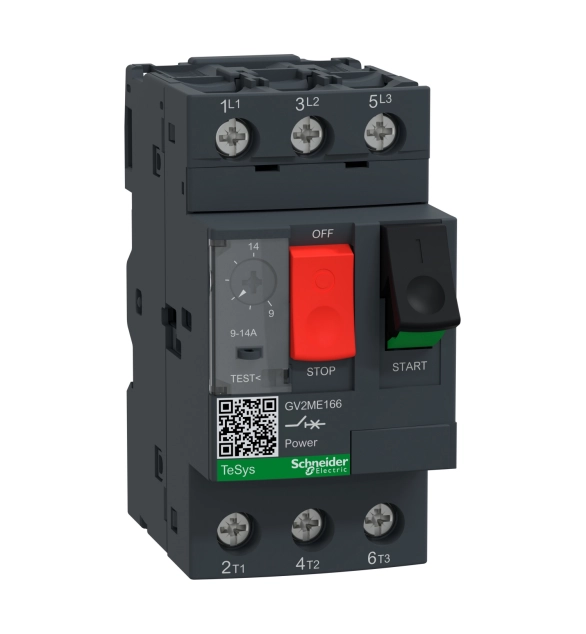

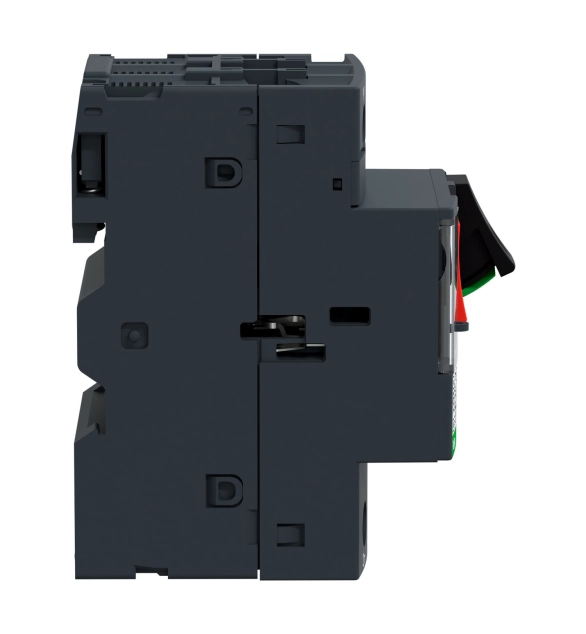

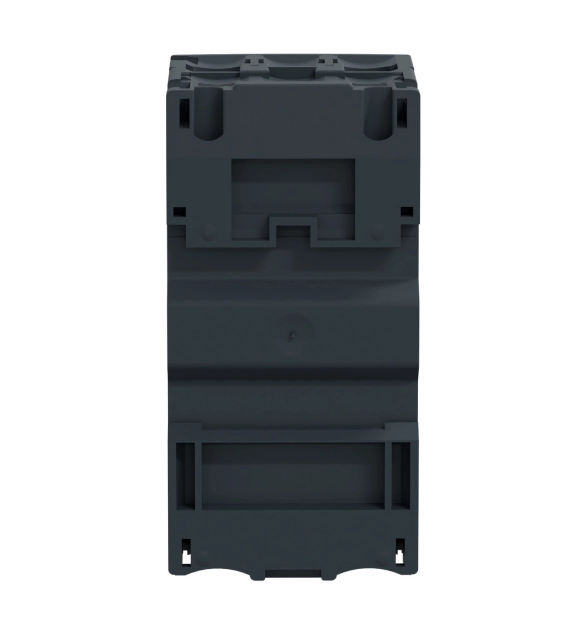

SCHNEIDER ELECTRIC Motor Circuit Breaker, 3P, 9-14A, HS code:85362010, COO:FR, 0.26kg

• Brand
  Schneider Electric
• Type of electrical connection of main circuit
  EV000415
• Number of poles
  3
• Rated operating voltage
  690
• Rated operation power at AC-3, 400 V
  5.5
• Degree of protection (IP)
  EV006405
• Type of control element
  EV000554
• With integrated under voltage release
  FALSE
• Width
  45
• With integrated auxiliary switch
  FALSE
• Phase failure sensitive
  TRUE
• Height
  89
• Device construction
  EV009311
• Rated permanent current Iu
  14
• Rated operation power at AC-3, 230 V
  3
• Switch off technique
  EV009462
• With thermal protection
  TRUE
• Overload release current setting
  9
• Adjustment range undelayed short-circuit release
  170
• Rated short-circuit breaking capacity lcu at 400 V, AC
  15
• Depth
  78.5
