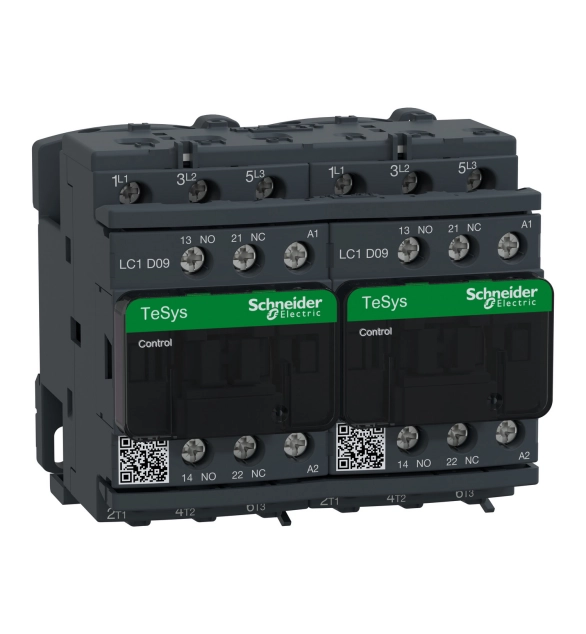

Реверсивен контактор TeSys D - 3P(3 NO) - AC3-<= 440 V 9A - 110 V AC, бобина | Spark & Co
  • 3D
|

СКУ: LC2D09F7

Реверсивен контактор TeSys D - 3P(3 NO) - AC3-<= 440 V 9A - 110 V AC, бобина

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    4
  • Degree of protection (IP)
    EV006405
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    110
  • Rated control supply voltage Us at AC 60HZ
    110
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Rail mounting possible
    TRUE
  • Degree of protection (NEMA)
    EV000154
  • Function
    EV003958
  • Number of normally open contacts as main contact
    3
  • Rated operation power NEMA
    3.73
  • Rated operation current Ie at AC-3, 400 V
    9
  • Rated operation current Ie at AC-1, 400 V
    20
  • Number of normally closed contacts as main contact

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/440V AC-3/3e (4kW/400V). It is provided with 110V 50/60Hz AC coils with integral transient suppressor modules, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. It is suitable for operating rates until 3600 cycles/hour and environment temperature until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
