СКУ: LC2D09E7

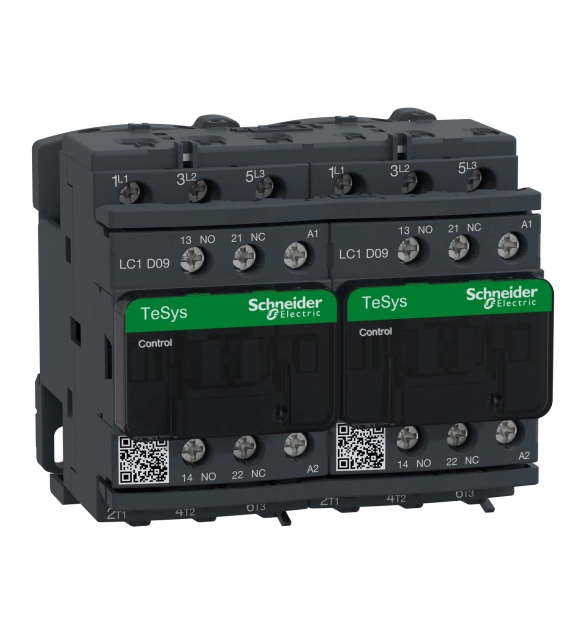

Реверсивен контактор 9A 1F+1O 120V FAST
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
4
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
48
-
Rated control supply voltage Us at AC 60HZ
48
-
Type of electrical connection for auxiliary- and control current circuit
EV000415
-
Rail mounting possible
TRUE
-
Degree of protection (NEMA)
EV000154
-
Function
EV003958
-
Number of normally open contacts as main contact
3
-
Rated operation power NEMA
3.73
-
Rated operation current Ie at AC-3, 400 V
9
-
Rated operation current Ie at AC-1, 400 V
20
-
Number of normally closed contacts as main contact
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/440V AC-3/3e (4kW/400V). It is provided with 48V 50/60Hz AC coils with integral transient suppressor modules, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. It is suitable for operating rates until 3600 cycles/hour and environment temperature until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
