СКУ: LC2D25P7

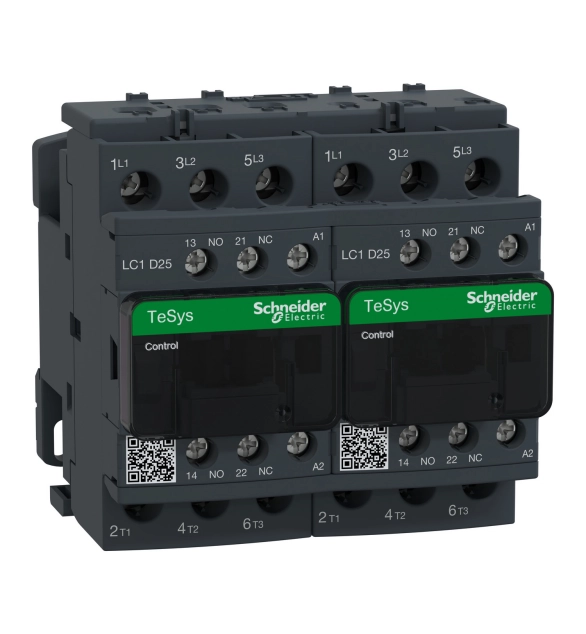

Реверсивен контактор 25A 1F+1O 230V C F

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    11
  • Degree of protection (IP)
    EV006405
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Rail mounting possible
    TRUE
  • Degree of protection (NEMA)
    EV000154
  • Function
    EV003958
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    40
  • Rated operation current Ie at AC-3, 400 V
    25
  • Rated operation power NEMA
    11.2

Easy TeSys Control contactor 3 poles for motor applications up to 95A 45kW/440V. It provides a 415V 50Hz AC coil, 1NO+1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 85mm width for standard. It provides standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 3 Mcycles mechanical durability. Operating rates up to 1200 cycles per hour. It can cover -5°C to 55°C working temperature and mounted by DIN-rail. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
