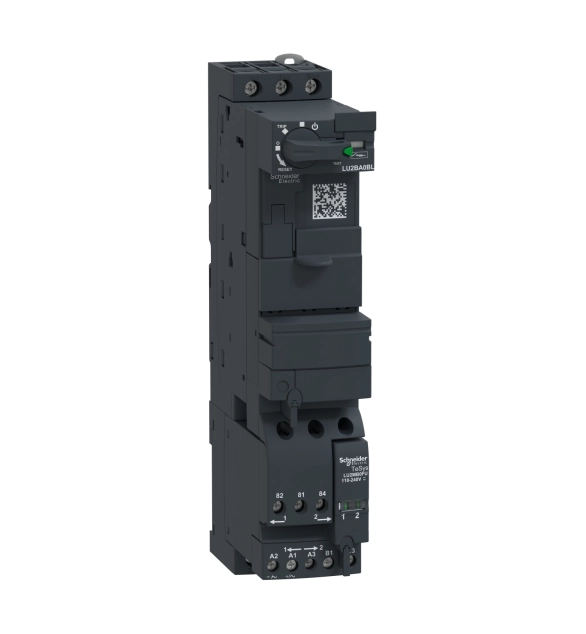

Reversing power base, TeSys Ultra, 3P, 12A/690V, coil 24VDC, without control terminals

• Brand
  Schneider Electric
• Type of electrical connection of main circuit
  EV000415
• Rated operation power at AC-3, 400 V
  5.5
• Degree of protection (IP)
  EV006405
• Suitable for emergency stop
  FALSE
• Voltage type for actuating
  EV000461
• Rated control supply voltage Us at DC
  24
• Supporting protocol for SERCOS
  FALSE
• Supporting protocol for INTERBUS-Safety
  FALSE
• Supporting protocol for AS-Interface Safety at Work
  FALSE
• Supporting protocol for DeviceNet Safety
  FALSE
• Supporting protocol for EtherNet/IP
  FALSE
• Supporting protocol for Foundation Fieldbus
  FALSE
• Supporting protocol for SafetyBUS p
  FALSE
• Supporting protocol for PROFINET CBA
  FALSE
• Supporting protocol for PROFINET IO
  FALSE
• Supporting protocol for PROFIsafe
  FALSE
• Supporting protocol for ASI
  FALSE
• Supporting protocol for PROFIBUS
  FALSE
• Supporting protocol for TCP/IP
  FALSE
• Supporting protocol for CAN
  FALSE
• Supporting protocol for INTERBUS
  FALSE
• Supporting protocol for DeviceNet
  FALSE
• Supporting protocol for Modbus
  FALSE
• Supporting protocol for Data-Highway
  FALSE
• Supporting protocol for LON
  FALSE
• Supporting protocol for SUCONET
  FALSE
• Number of auxiliary contacts as normally closed contact
  1
• Number of auxiliary contacts as normally open contact
  1
• Rated conditional short-circuit current, type 1, 480 Y/277 V
  10000
• Rated conditional short-circuit current, type 2, 230 V
  50000
• Rated conditional short-circuit current, type 1, 600 Y/347 V
  4000
• With transformer
  FALSE
• Ambient temperature, upper operating limit
  70
• External reset possible
  FALSE
• Type of electrical connection for auxiliary- and control current circuit
  EV000415
• Rated conditional short-circuit current, type 2, 400 V
  50000
• Number of command positions
  3
• Width
  45
• Coordination class according to IEC 60947-4-3
  EV006627
• Depth
  126
• Rail mounting possible
  TRUE
• Supporting protocol for other bus systems
  FALSE
• With fuse
  FALSE
• With short-circuit release
  TRUE
• Rated operation current Ie
  12
• Rated operation current at AC-3, 400 V
  12
• Rated operation power at AC-3, 230 V, 3-phase
  3
• Rated power, 575 V, 60 Hz, 3-phase
  5.5
• Rated power, 460 V, 60 Hz, 3-phase
  5.5
• Height
  224
• Type of motor starter
  EV004002
• Number of indicator lights
