СКУ: LP2K09105BD

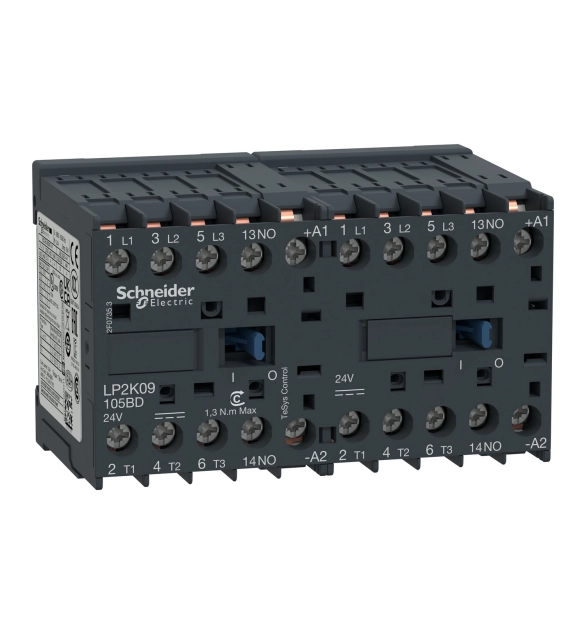

reversing Контактор, TeSys K, 3P, AC-3/AC-3e,440V 9A, 1NO, 24V DC coil, solder pins
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
5.5
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
Number of auxiliary contacts as normally open contact
1
-
Number of auxiliary contacts as normally closed contact
-
Modular version
FALSE
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation power at AC-4, 400 V
2.2
-
Rated operation current Ie at AC-3, 400 V
12
-
Rated operation current Ie at AC-1, 400 V
20
-
Rated operation current Ie at AC-4, 400 V
6
TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW/400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
