СКУ: 16330

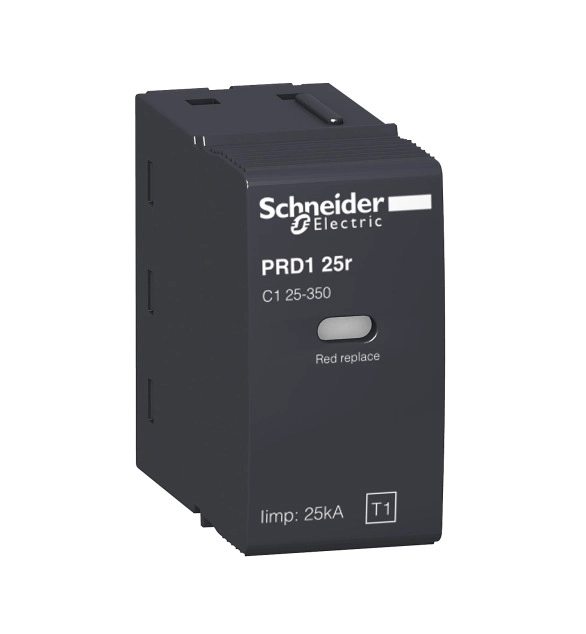

PRD1 25r модулен катоден отводител - 1 полюс + N - 350V - с дистанционна индикация
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Number of poles
2
-
System configuration DC
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
Voltage protection level
1.5
-
Signalling at the device
EV000428
-
Nominal voltage AC
400
-
Max. conductor cross section solid (solid, stranded)
35
-
Max. conductor cross section flexible (fine-strand)
35
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
Integrated backup fuse
FALSE
-
Max. continuous voltage AC
350
-
System configuration TN-C
FALSE
-
System configuration TT
TRUE
-
Voltage switching spark gap technology
TRUE
-
Test class
EV007888
-
Remote signalling
TRUE
-
Voltage protection level L-N
1.5
-
System configuration TN-S
TRUE
-
Construction size
EV007011
-
Voltage protection level N-PE
1.5
This Acti9 REDs is a modular residual current circuit breaker (RCCB) with recloser. It is a 4P circuit breaker with 25A In rated current, 30mA earth leakage sensitivity and A type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It disconnects of on-load electric circuits already protected against overloads and short-circuits. It restarts automatically after insulation monitoring of the downstream circuit. It is only used on TT and TN-S earthing grounding systems. The Acti9 REDs and REDtest versions are dedicated to tertiary,industrial and infrastructure applications. This product is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 630A. The (Inc/IΔc) conditional rated short circuit current is 6kA. It has a mechanical endurance going up to 4000 cycles. The Ue operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 14. The dimensions are (W) 125mm x (H) 98mm x (D) 79.5mm. The weight is 0.67kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 40°C. The storage temperature is from -20°C to 60°C.
