СКУ: 56505

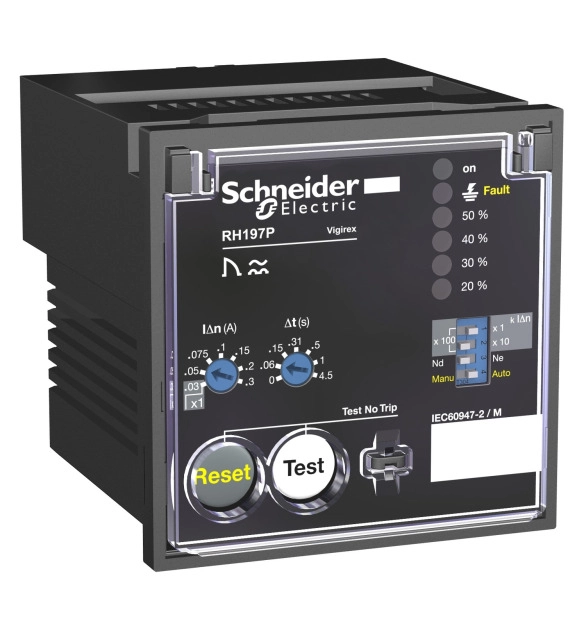

Релейна защита от остатъчен ток, VigiPacT RH197P, 30mA-30A, 48VAC 50/60Hz, 24/130VDC, alarm 50%, front panel mounting
-
Suitable for power circuit breaker
TRUE
-
Suitable for overload relay
FALSE
-
Type of electric connection
EV003968
-
Suitable for off-load switch
TRUE
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
200
-
Rated control supply voltage Us at AC 50HZ
200
-
Rated control supply voltage Us at AC 60HZ
200
-
Suitable for motor safety switch
TRUE
-
Brand
Merlin Gerin
VigiPacT RH21P is a front panel mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 220/240VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity (IDn) is selectable with 2 thresholds 30mA and 300mA. The time delay (Dt) is instantaneous for 30mA, and selectable to instantaneous or 0.06s for 300mA. It requires a local manual reset after a fault clearance. The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
