прекъсвач EasyPact CVS630F, 36 kA, 415 VAC, 500 A номинален, термомагнитно TM-D изключващо у-во, 4P 4d | Spark & Co
  • 3D
|

СКУ: LV563311

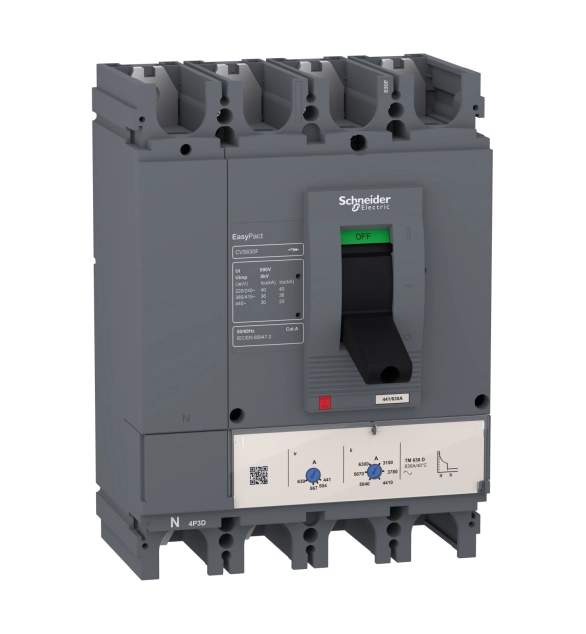

прекъсвач EasyPact CVS630F, 36 kA, 415 VAC, 500 A номинален, термомагнитно TM-D изключващо у-во, 4P 4d

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Rated permanent current Iu
    630
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    36
  • Complete device with protection unit
    TRUE
  • Rated voltage
    440
  • Adjustment range undelayed short-circuit release
    2520
  • Number of auxiliary contacts as change-over contact
  • Overload release current setting

EasyPact CVS630F is a 4 poles 4d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 500A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS630F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
