СКУ: 56293

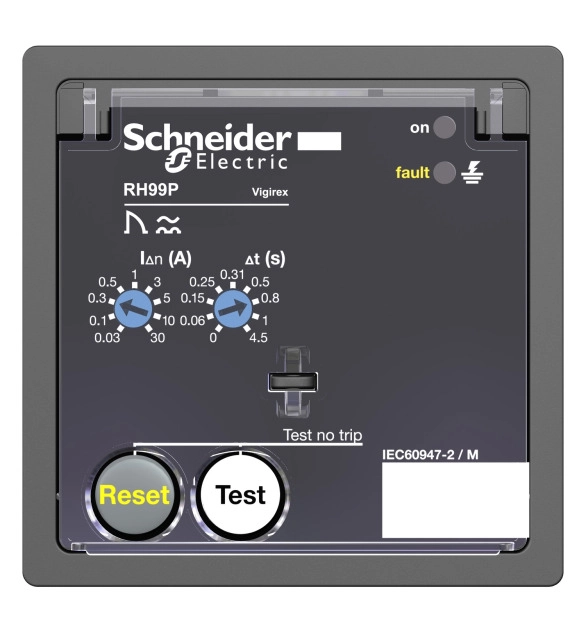

Реле за защита от остатъчен ток RH99P с автоматично нулиране - 0.03..30 A - 0..4.5 s - 240 V
-
Suitable for power circuit breaker
TRUE
-
Suitable for overload relay
FALSE
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Type of electric connection
EV003968
-
Suitable for off-load switch
TRUE
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
24
-
Suitable for motor safety switch
TRUE
-
Brand
Merlin Gerin
VigiPacT RH99P is a front panel mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 110/130VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity (IDn) is selectable with 9 thresholds from 30mA to 30A. The time delay (Dt) is selectable with 9 settings from instantaneous to 4.5s. It requires a local manual reset after a fault clearance. The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
