СКУ: A9E21181
РЕЛЕ IRCI 8A 2P UC 230
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Voltage type for actuating
EV000460
-
Number of contacts as change-over contact
1
-
With detachable clamps
FALSE
-
Width
36
-
Rated control supply voltage Us at AC 50HZ
230
-
Rated control supply voltage Us at AC 60HZ
230
-
Depth
67
-
Min. adjustable off-delay time
0.1
-
Max. permitted delay-on energization time
10
-
Min. adjustable delay-on energization time
0.1
-
Single-phase hysteresis possible
TRUE
-
Three-phase hysteresis possible
FALSE
-
Single-phase over current possible
TRUE
-
Single-phase under current possible
TRUE
-
Current measuring range
0.15
-
Three-phase over current possible
FALSE
-
Contains function DC-voltage under current
TRUE
-
Three-phase under current possible
FALSE
-
Function DC-current hysteresis
TRUE
-
Contains function DC-voltage over current
TRUE
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Height
88.1
-
Max. permitted off-delay time
0.1

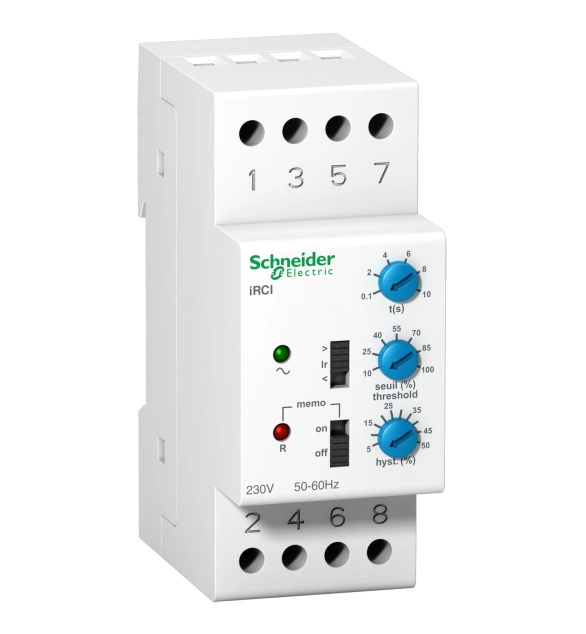

This Acti9 iRCI product is a current control relay. It has a changeover contact (C/O). The Ie rated operational voltage is 8A with a Ue rated operational voltage of 250VAC, with the condition of test that the power factor (cos phi) is worth 1.
