3CO 10A RELAY CYLIND LTB 110VDC | Spark & Co
  • 3D
|

СКУ: RUMC31FD

3CO 10A RELAY CYLIND LTB 110VDC

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006415
  • With detachable clamps
    FALSE
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    110
  • With LED indication
    FALSE
  • Nominal current
    10
  • Drive, switching attitude
    EV005821
  • With forced-guided contacts
    TRUE
  • Complete with socket
    FALSE
  • Material of contact insert
    EV000154
  • Material of contact surface
    EV000154
  • Material contact
    EV000154
  • Type of electric connection
    EV000414
  • Type of switch contact
    EV005824
  • Drive, polarization
    EV005819
  • Width
    35
  • Depth
    56
  • Height
    35.4
  • Number of contacts as change-over contact
    3
  • Number of contacts as normally closed contact
  • Number of contacts as normally open contact

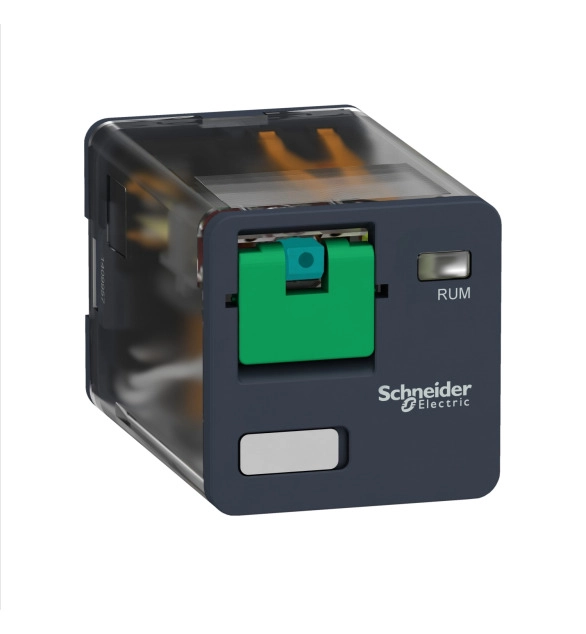

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 110V DC and has 3 changeover contacts triple pole double throw with a rating of 10A. It provides a complete system solution for the most demanding applications. It also offers one-step lockable test button. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).
