СКУ: A9C70124
RCA дистанционнно утравление Аux с Ti24 за iC60 3P-4P
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Rated voltage
230
-
With auto test for earth leakage function
FALSE
-
Suitable for max. number of poles main contact unit (total)
4
-
Number of contacts as change-over contact
1
-
Device fitting
EV000646
-
Installed at the factory
FALSE
-
Number of contacts as normally closed contact
2
-
Suitable for max. current main contact unit
63
-
Additional equipment
EV009771
-
Number of fault-signal switches
-
Number of contacts as normally open contact
-
Rated switch current
0.01
-
Width in number of modular spacings
3.5

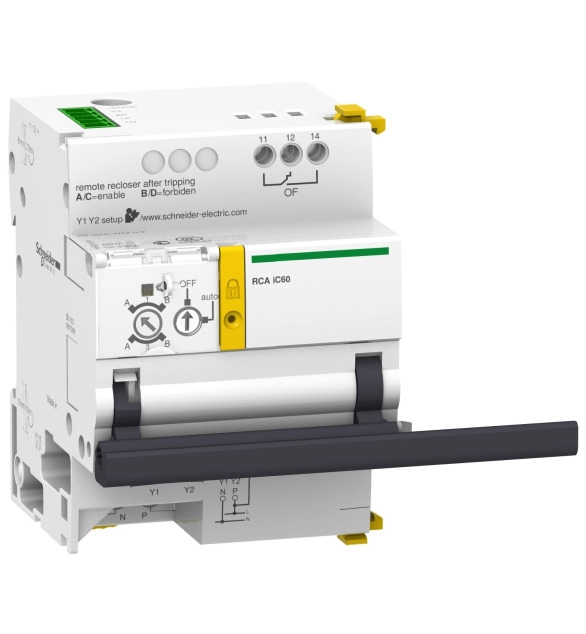

This Acti9 RCA remote control system is dedicated to iC60 circuit breakers. It allows remote electrical control OF of circuit breakers with or without Vigi add-on RCD, with or without auxiliary. It allows circuit breaker reseting after tripping, in accordance with safety principles and regulations in force. The width in 9mm pitches is 7. This device controls 3P, 4P installations with Ti24 interface. it allows local control by operating handle. The Ue rated operational voltage is 230VAC. The operating frequency is 50Hz or 60Hz. The circuit is placed in safety configuration by the padlocking device. 2 choices of operation after tripping are possible (A) Enabling of remote circuit breaker resseting or (B) Inhibition of remote resetting. The version with Ti24 interface allows direct interfacing of remote control with programmable logic controller, supervision system, communication device having inputs/outputs in 24VDC (control, OF and SD indications). The version with Ti24 interface allows fast, reliable connection of the remote control to the Acti9 Smartlink thanks to the prefabricated cables. The version with Ti24 interface allows remote indication by OF potential-free contact, provision of 2 operating modes 1 and 3. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C.
