Разширение ETL iTL 32 - 1P -1NO - 32A - бобина 110 VDC - 230...240VAC 50/60Hz | Spark & Co
  • 3D
|

СКУ: A9C32836

Разширение ETL iTL 32 - 1P -1NO - 32A - бобина 110 VDC - 230...240VAC 50/60Hz

  • Brand
    Schneider Electric
  • Number of contacts as normally open contact
    1
  • Width in number of modular spacings
    1
  • Mounting method
    EV000242
  • Rated current
    32
  • Frequency control voltage 1
    50
  • Voltage type of supply voltage
    EV000460
  • Control voltage 1
    230
  • Type of control voltage 1
    EV000460
  • Supply voltage
    24
  • Type of control voltage 2
    EV000461
  • Max. load fluorescent lamp (parallel compensated)
    2400
  • Number of contacts as normally closed contact
  • Number of contacts as change-over contact
  • Built-in depth
    84
  • Function
    EV000147
  • Control voltage 2
    110
  • Max. incandescent lamp load
    4200
  • Max. load fluorescent lamp
    3350
  • Max. load fluorescent lamp (Duo circuit)
    5300
  • Max. switching current (cos phi = 0.6)
    32

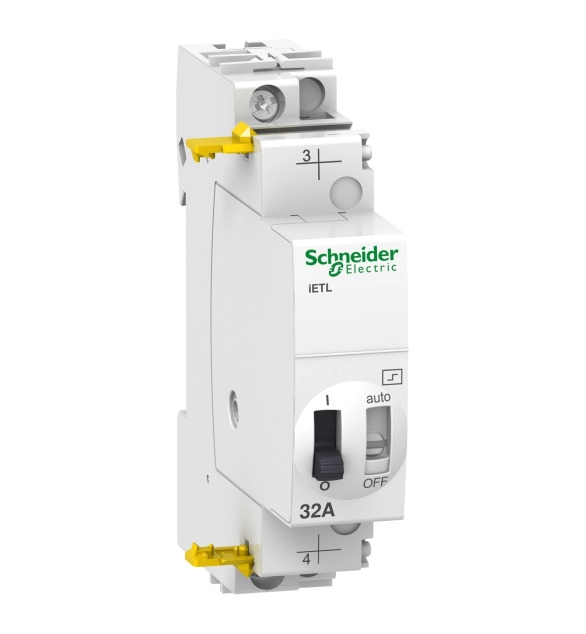

This Acti9 iETL iTL 32 is a modular extension for impulse relay. This 1P device has 1 normally open contact. Rated current is 32A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be 50ms. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C . This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
