СКУ: DF143C
Разединител 50А за предпазител FUSE 14 X 51 MM
-
Brand
Schneider Electric
-
Number of poles
3
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Mounting method
EV000242
-
With optical defect indication
FALSE
-
Width in number of modular spacings
4.5
-
Lockable
FALSE
-
Built-in depth
70
-
Nominal voltage
690
-
For fuse size
EV010287

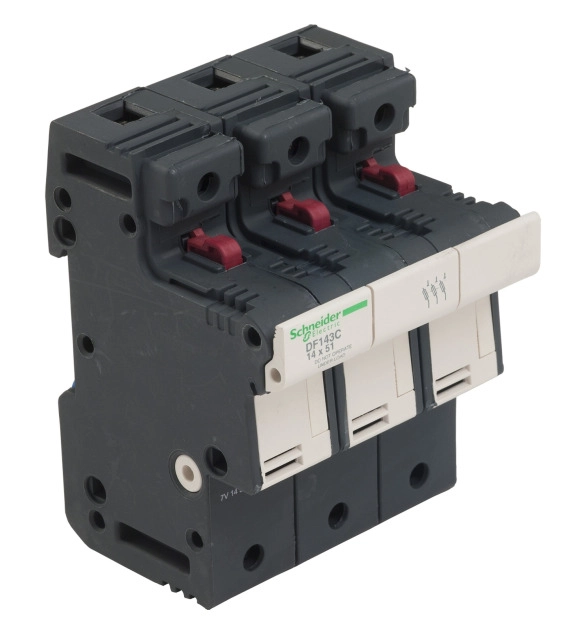

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links with stricker up to 50A and short circuit current up to 120kA at 400V. To be equipped with an early break auxiliary contact module DF14AM* (to be ordered separately). Compact (79mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with striker (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC).
