Разединител 3X32A със стоп.предпазител 10х38 | Spark & Co
  • 3D
|

СКУ: GS1DD3

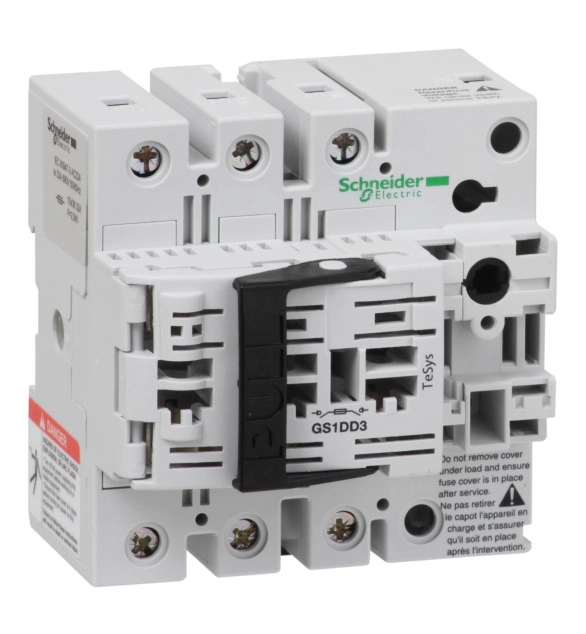

Разединител 3X32A със стоп.предпазител 10х38

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Version as emergency stop installation
    FALSE
  • Number of poles
    3
  • Version as safety switch
    FALSE
  • Degree of protection (IP), front side
    EV006405
  • Rated operation power at AC-23, 400 V
    15
  • Motor drive integrated
    FALSE
  • Suitable for floor mounting
    FALSE
  • Motor drive optional
    FALSE
  • Rated permanent current Iu
    32
  • Version as main switch
    TRUE
  • Suitable for front mounting
    FALSE
  • Cable entry
    EV000154
  • Type of control element
    EV005987
  • Conditioned rated short-circuit current Iq
    100
  • Equipped with connectors
    FALSE
  • With error protection
    FALSE
  • Position control element
    EV000154
  • Rated short-time withstand current lcw
    100
  • Suitable for busbar mounting
    FALSE
  • Max. rated operation voltage Ue AC
    800
  • Suitable for fuses
    EV010286

TeSys GS fuse switch-disconnector, 3 poles (3P), 32A/800V, to be used with NFC cylindrical fuse links size 10x38mm up to 32A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH103 (to be ordered separately), or with an external operating handle GS2AH that can be front side, left-hand side, or right-hand side mounting (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Type aM and gG 10x38mm cylindrical fuse links without strickers DF2CA, DF2CN are available (to be ordered separately). Multi standards certified (IEC, Marine).
