СКУ: NSYS3D101030D
Табло S3D с 2врати 1000х1000х300 без МП NSYS3D101030D
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Degree of protection (IP)
EV006420
-
Surface finishing
EV008895
-
Material
EV000179
-
With glazed door
FALSE
-
With backside door
FALSE
-
Material quality
EV000154
-
Number of doors
2
-
Width
1000
-
Degree of protection (NEMA)
EV007990
-
Height
1000
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Depth
300
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the enclosure according to IEC 62208
250
-
Max. permissible load of the door(s) according to IEC 62208
50

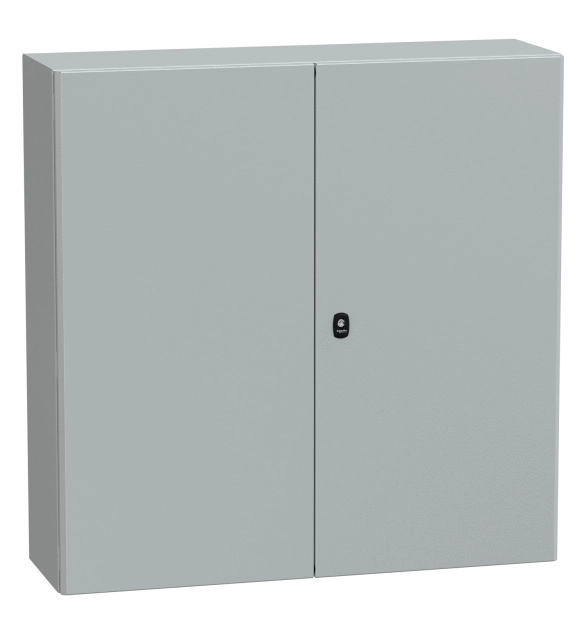

PanelSeT S3D is a wall-mounting steel enclosure for multi-purpose applications It is designed for use in harsh environments and has a nominal height, width and depth of 1000mm, 1000mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It has a high impact resistance with an IK10 (IEC62262) rating and a high resistance to dust and water with an IP55 rating (IEC60529) This enclosure consists of a body, two cable gland plates, two plain doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 46kg It is certified by GL, UL, cUL, LR, BV and DNV It has a gutter-shaped front rail double sheet thickness and a single piece body for greater durability The accessibility for operation is from the front
