СКУ: XB4BK123M5

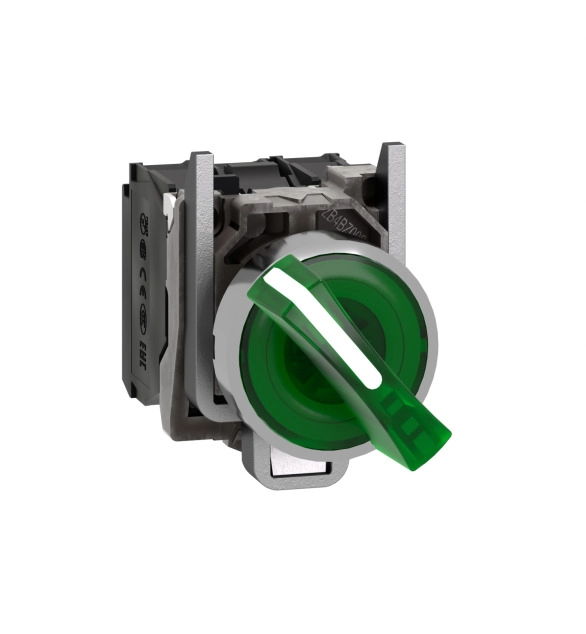

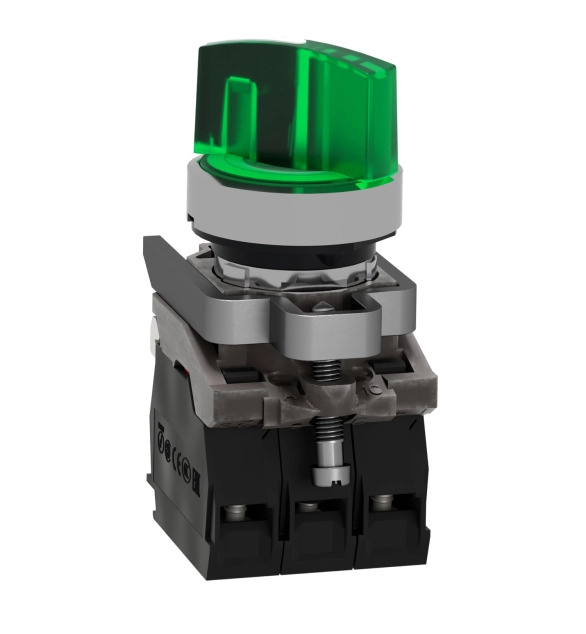

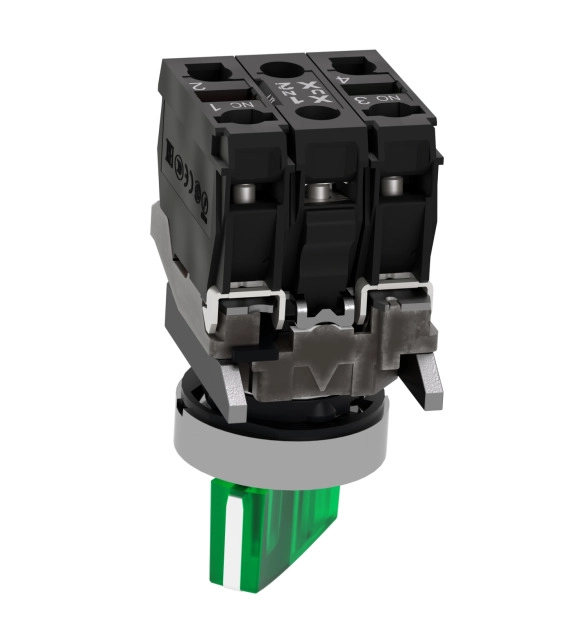

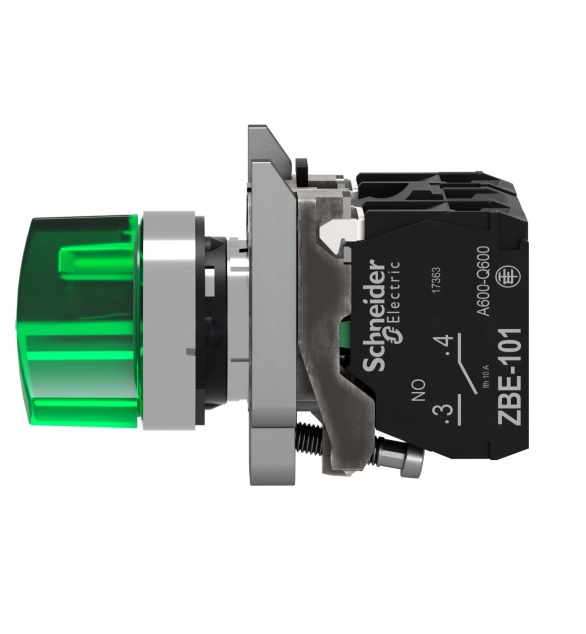

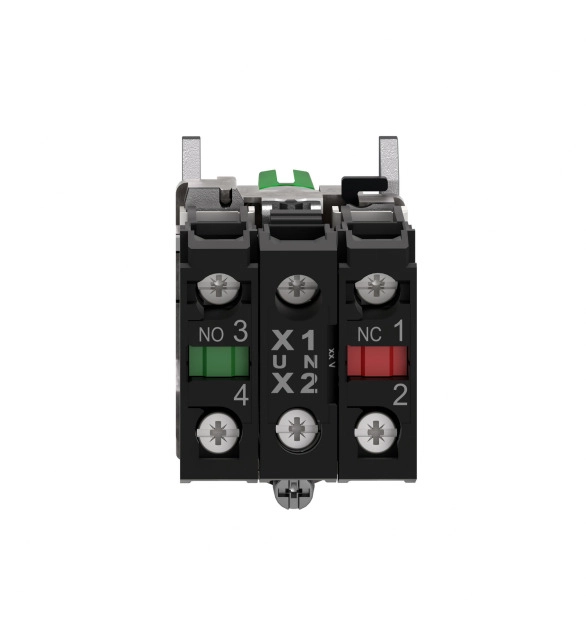

Превключвател свет. зел. 230V XB4BK123M5
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Number of contacts as normally closed contact
1
-
Type of control element
EV004094
-
Spring-return
FALSE
-
Colour front ring
EV000291
-
Hole diameter
22.5
-
Switching function latching
TRUE
-
With front ring
TRUE
-
Degree of protection (NEMA)
EV000154
-
With light source
TRUE
-
Supply voltage
230
-
Number of contacts as change-over contact
-
Colour button
EV000233
-
Degree of protection (IP)
EV006422
-
Number of switch positions
2
-
Material front ring
EV000914
-
Suitable for illumination
TRUE
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete pilot light has a circular head shape and comes with integral green LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22. This complete pilot light with plain lens provides clear visual feedback on the status of machines. This pilot light has a 24V to 120V AC/DC rating. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
