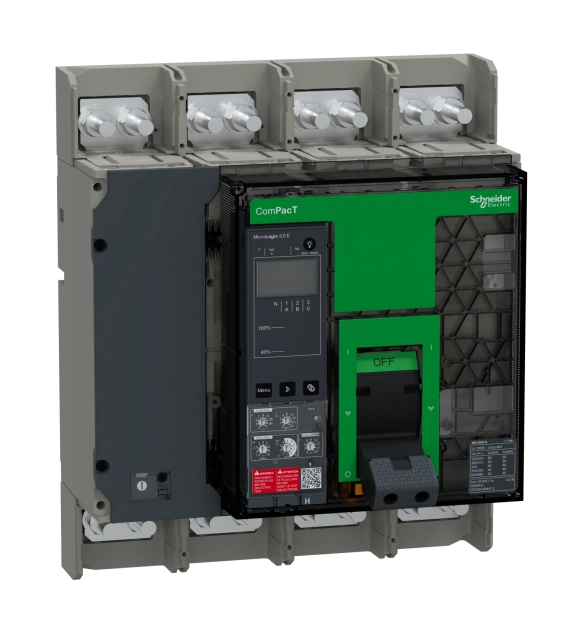

Прекъсвач, ComPacT NS1250H, 70kA при 415VAC, 4P, фиксиран, ръчно управление, MicroLogic 5.0E контролен блок, 1250A | Spark & Co
  • 3D
|

СКУ: C125H45EFM

Прекъсвач, ComPacT NS1250H, 70kA при 415VAC, 4P, фиксиран, ръчно управление, MicroLogic 5.0E контролен блок, 1250A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Rated voltage
    690
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    70
  • With integrated under voltage release
    FALSE
  • Rated permanent current Iu
    1250
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Complete device with protection unit
    TRUE
  • Overload release current setting
    500
  • Adjustment range short-term delayed short-circuit release
    750
  • Adjustment range undelayed short-circuit release
    2500

This ComPacT NSX100HB1 is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 75kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 40A rating electronic MicroLogic 6.2 E trip unit, with an adjustable ground-fault protection (with OFF position). MicroLogic 6.2 E trip unit provides adjustable long time, short time and instantaneous protection. MicroLogic 6.2 E has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100HB1 is part of Schneider Electric EcoStruxure Power architecture.
