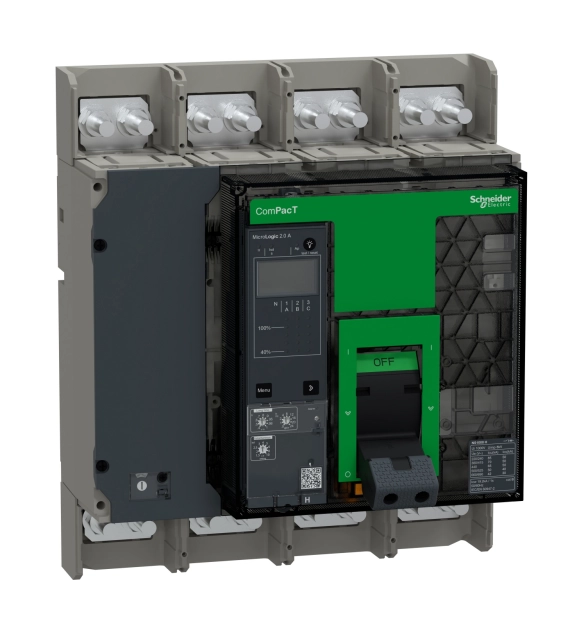

Прекъсвач, ComPacT NS1000H, 70kA при 415VAC, 4P, фиксиран, ръчно управление, MicroLogic 2.0A контролен блок, 1000A

This product is a 4 poles ComPacT NS800L circuit breaker. This device is in fixed mounting mode and is manually operated. This circuit breaker embeds a MicroLogic 2.0A control unit, and is equipped with front connections at top side and bottom side. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current is 800A. The operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 150kA rms at 415VAC 50/60Hz. The circuit breaker can be manually operated with its toggle. The electronic MicroLogic 2.0A control unit has a 800A rating. MicroLogic 2.0A control unit provides an overload protection (true rms and adjustable long time protection), and an instantaneous short-circuit protections. This product embeds an electronic MicroLogic 2.0A control unit, with 800A rating. MicroLogic 2.0A control unit provides adjustable long time and instantaneous protections (ANSI codes 49/50). MicroLogic 2.0A is equipped with a digital LCD screen and displays rms values of currents (ammeter). The circuit breaker is equipped with front connections terminals at top and bottom sides. This product comes with a variety of optional functions and accessories. The dimensions (without the toggle) are 327mm (Heigh) x 280mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
