СКУ: 18616

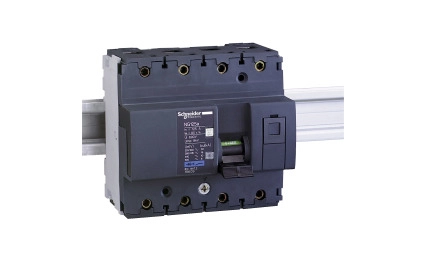

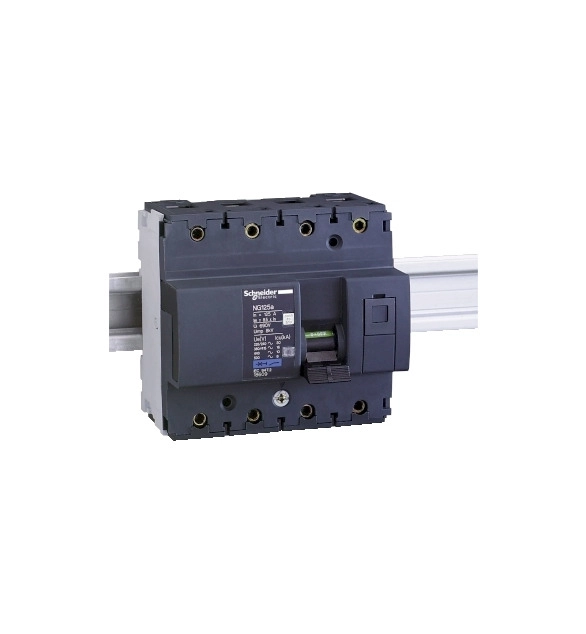

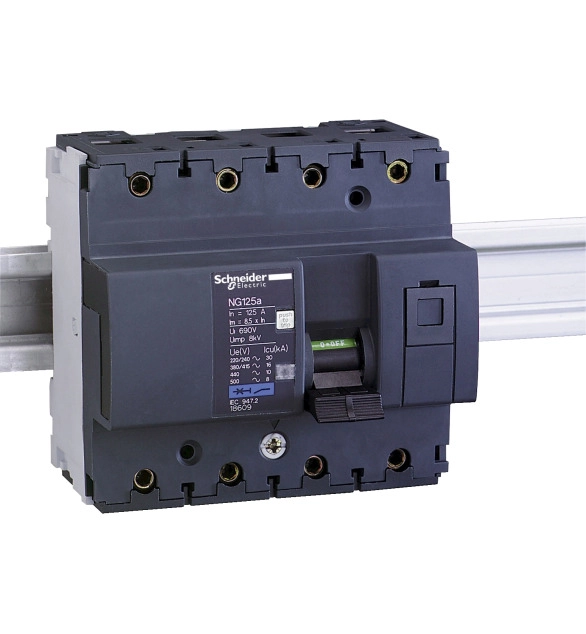

АВТОМ. ПРЕКЪСВАЧ NG125N 1P 50A C
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Frequency
50
-
Built-in depth
47
-
Width in number of modular spacings
3
-
Number of poles (total)
2
-
Rated insulation voltage Ui
690
-
Number of protected poles
2
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50
-
Additional equipment possible
TRUE
-
Rated impulse withstand voltage Uimp
8
-
Rated voltage
400
-
Release characteristic
EV000084
-
Concurrently switching neutral conductor
TRUE
-
Voltage type
EV000509
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25
-
Over voltage category
4
-
Ambient temperature during operating
-30
-
Pollution degree
3
-
Rated current
80
-
Connectable conductor cross section solid-core
16
-
Connectable conductor cross section multi-wired
10
This Acti9 product is a cartridge C1 Neutral-350 for surge arrester PRD1 25r and PRD1 Master. This product is compatible with TT and TN earthing system. The Uc maximum continuous operating voltage is 350VAC. The Up Voltage protection level is 1.5kV. It can be plugged into a surge protecting device module. Its width is 4 pitches of 9mm. The product color is anthracite grey (RAL7016). The dimensions are (W) 36mm x (H) 50mm x (D) 57mm. According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 80°C. It is compliant with IEC 61643-1 and EN 61643-11 standards.
