Прав редуктор GBX - O 60 mm - отношение 3:1 < 10 arc.min - 28 N.m | Spark & Co
  • 3D
|

СКУ: GBX060003K

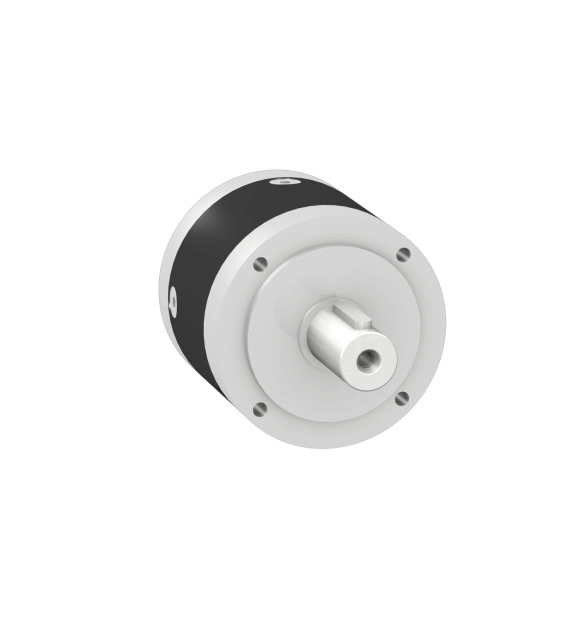

Прав редуктор GBX - O 60 mm - отношение 3:1 < 10 arc.min - 28 N.m

  • Brand
    Schneider Electric
  • Accessory
    TRUE
  • Spare part
    FALSE
  • Type of electrical accessory/spare part
    EV000154
  • Type of mechanical accessory/spare part
    EV000154

This product is part of the Lexium SD3 range, an offer of 3phase stepper drives and stepper motors. This planetary gearbox has straight teeth, lubricated for life. The gearbox external diameter is 60mm. This gearbox is to adapt speeds and torques of motors. This gearbox has a reduction ratio of 5 per 1, maximum axial force of 450N at 100RPM, a continuous output torque of 40N.m at 100RPM at 30degreeC. It offers service life of about 30000h at 100RPM at 30degreeC. It is an IP54 rated product. The enclosure is made of black anodized aluminium. It weighs 0.9kg. It can be mounted in any position. The SD3 is an universally applicable stepper motor drive. Stepper drives and stepper motors for motion control.
