СКУ: EMS59000

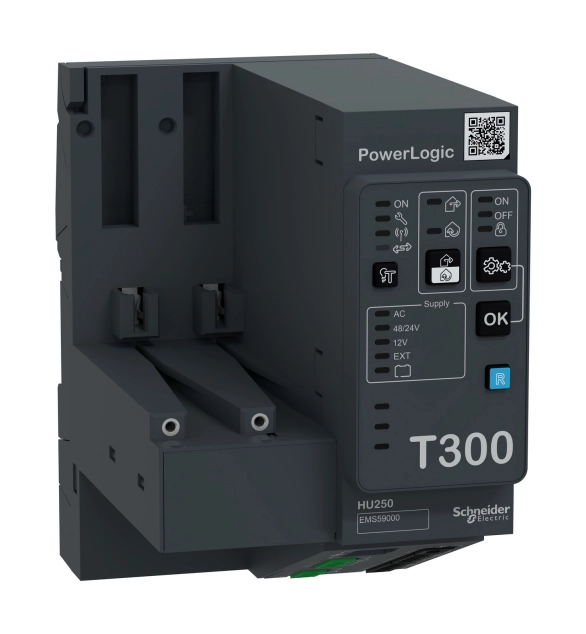

PowerLogic HU250: Head Unit communication gateway with cyber security management
-
Brand
Schneider Electric
-
Width
90
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Fieldbus connection over separate bus coupler possible
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Voltage type of supply voltage
EV000461
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Radio standard eGPRS
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Front built-in possible
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for other bus systems
TRUE
-
Supporting protocol for SUCONET
FALSE
-
Wall mounting/direct mounting
FALSE
-
Rail mounting possible
TRUE
-
Height
140
-
System accessory
FALSE
-
Supporting protocol for TCP/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Supply voltage DC
12
-
Degree of protection (IP)
EV006409
-
With potential separation
FALSE
-
Depth
140
-
Rack-assembly possible
TRUE
-
Radio standard GPRS
TRUE
-
Radio standard LTE
TRUE
-
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
Head Unit gateway with EAC marking. It include for communication port: 2 RJ45 for Ethernet, 1 RJ45 for modbus RS485, dual Ethernet port daisy-chain. The number of digital inputs is 6 for multi purpose and 2 for remote control. And number of digital outputs is 2 for multi purpose. This product can be clip in DIN rail. Supply voltage can range from 12 to 48 VDC. The degree of protection is IP2x for body and IP4x in the front. It complies with CE and EAC certificate. Mechanical dimensions are 140 mm in height, 90 mm in width and 140 mm in length.
