СКУ: NSYSFX201060
Модулен шкаф SFX 2000X1000X600 неръжд.30
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Degree of protection (IP)
EV006420
-
With glazed door
FALSE
-
Depth
600
-
With backside door
FALSE
-
Colour
EV000294
-
Surface finishing
EV000154
-
Number of doors
2
-
Width
1000
-
Degree of protection (NEMA)
EV007990
-
Material
EV000166
-
Connectable
FALSE
-
Height
2000
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall mounting
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Impact strength
EV008784
-
Number of locks
1
-
Max. permissible load of the door(s) according to IEC 62208
50
-
Material quality
EV006908
-
Max. permissible load of the mounting plate according to IEC 62208
300

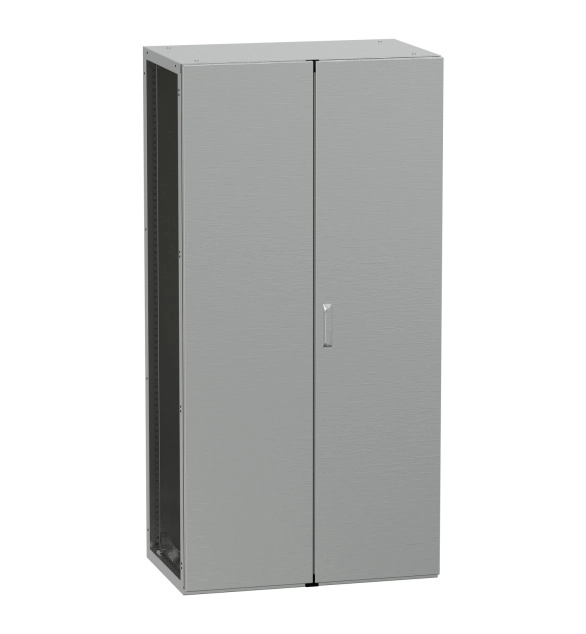

PanelSeT SFX stainless steel 304L floor-standing enclosure is designed for multi-purpose use and is resistant to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) This enclosure has a nominal height, width and depth of 2000mm, 1000mm and 600mm respectively The enclosure is made with a Scotch-Brite® brushed surface finish The enclosure consists of a structure, two plain doors with reinforcement frames, four mounting plate brackets, a cable gland plate and a locking system with handle on the door The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The enclosure has a three-point lock with a handle with 5mm double-bar insert The door, the cable gland plate and the mounting plate brackets can be removed for maintenance purposes The net weight of the enclosure is 105kg
