СКУ: RPM22B7

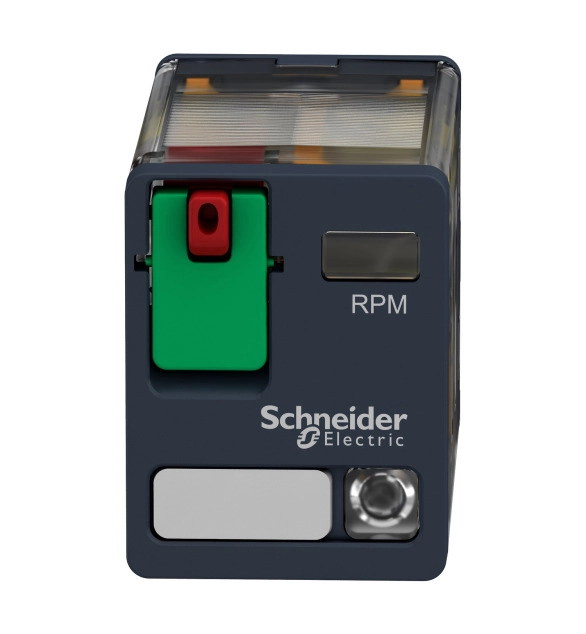

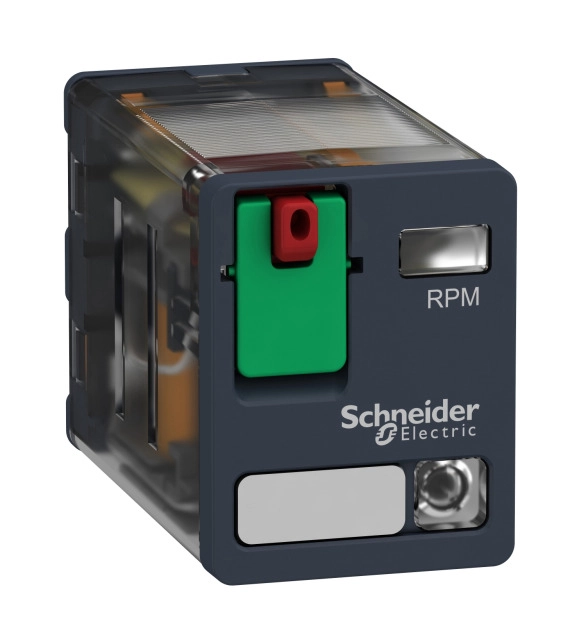

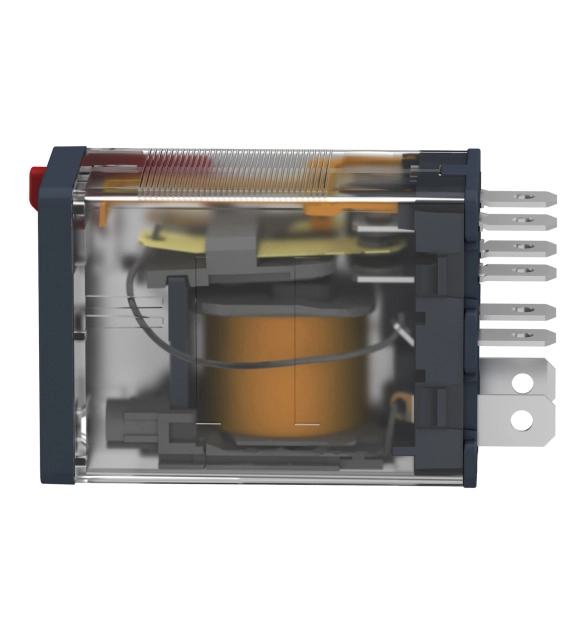

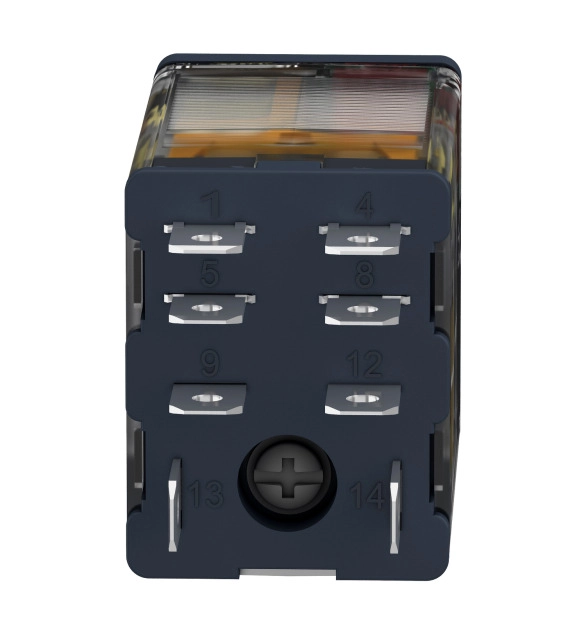

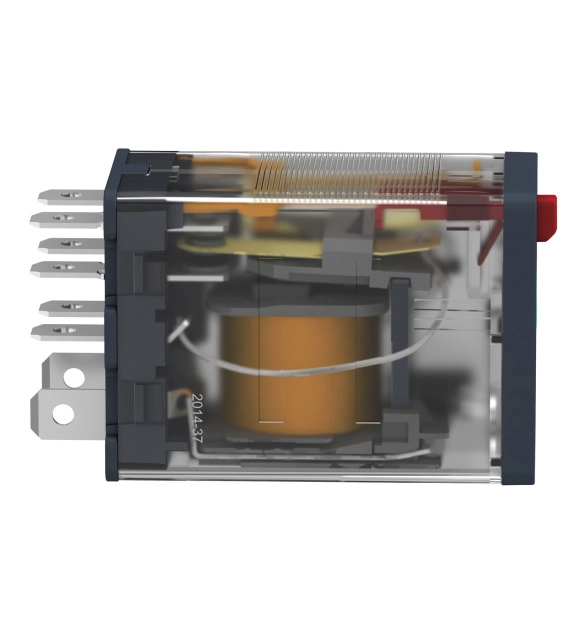

Power relay 15A 2CO lock LED 24V AC
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Degree of protection (IP)
EV006415
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Width
21
-
Number of contacts as change-over contact
2
-
With LED indication
TRUE
-
Depth
53
-
With detachable clamps
TRUE
-
Drive, switching attitude
EV005821
-
With forced-guided contacts
TRUE
-
Drive, polarization
EV005820
-
Type of switch contact
EV005825
-
Complete with socket
FALSE
-
Material of contact insert
EV000154
-
Material of contact surface
EV000154
-
Material contact
EV000154
-
Type of electric connection
EV000414
-
Nominal current
15
-
Height
27
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.
