СКУ: CAD506MD
Помощни контакти 220V CC LPL RES
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000461
-
With LED indication
FALSE
-
Suitable for manual operation
FALSE
-
Connection type auxiliary circuit
EV000154
-
Interface
FALSE
-
Mounting method
EV010333
-
Rated operation current Ie, 400 V
10
-
Rated control supply voltage Us at DC
220
-
Number of auxiliary contacts as normally open contact
5
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally closed contact, delayed switching
-
Number of auxiliary contacts as normally open contact, leading

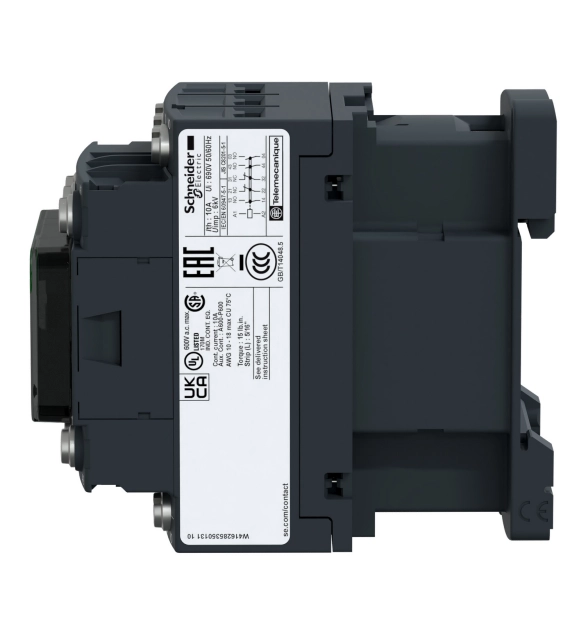

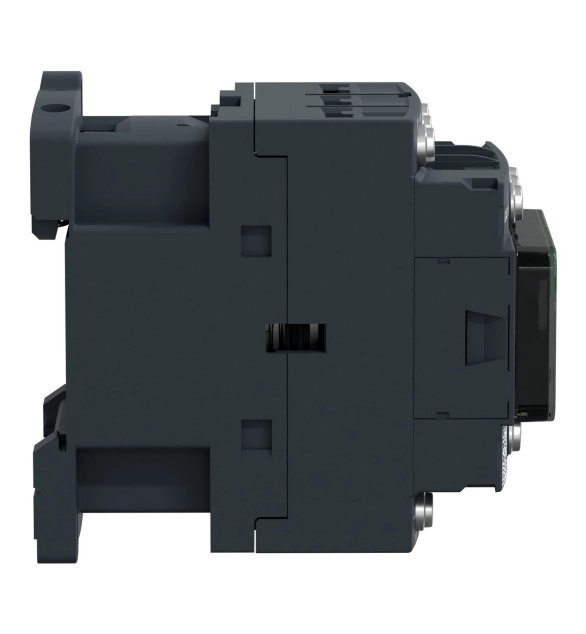

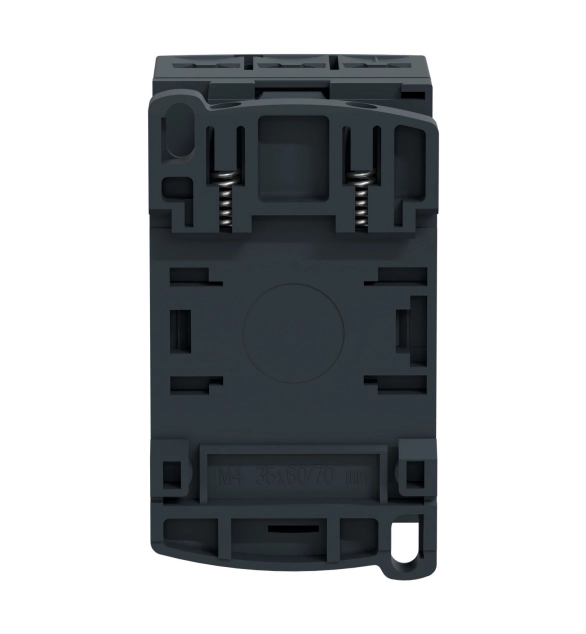

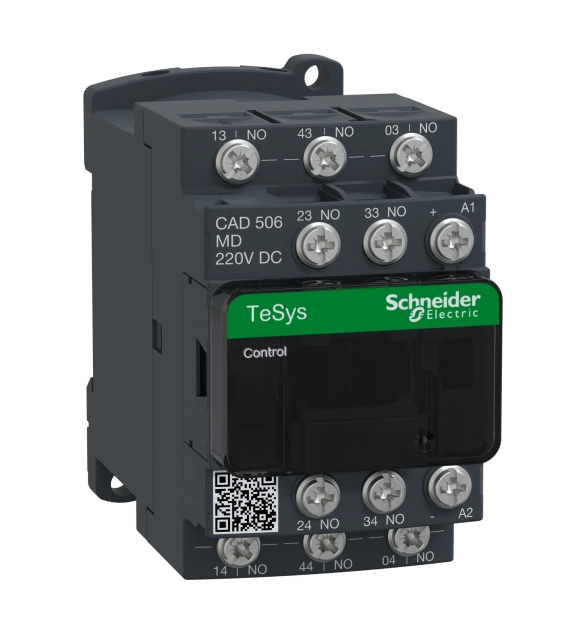

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
