СКУ: 32610
Планка с ел. и мех. блокировка 400..630 A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Version as reversing switch
FALSE
-
Suitable for front mounting centre
TRUE
-
Max. rated operation voltage Ue AC
690
-
Voltage release optional
FALSE
-
Device construction
EV009211
-
Version as safety switch
FALSE
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Rated operating voltage
690
-
Suitable for front mounting 4-hole
TRUE
-
Number of switches
1
-
Motor drive integrated
FALSE
-
Suitable for intermediate mounting
FALSE
-
Motor drive optional
FALSE
-
Version as main switch
TRUE
-
Interlockable
TRUE
-
Version as maintenance-/service switch
TRUE
-
Colour control element
EV000206
-
Suitable for distribution board installation
TRUE
-
Type of control element
EV004095
-
Number of poles
4
-
Degree of protection (IP), front side
EV006415
-
Suitable for floor mounting
TRUE
-
Number of auxiliary contacts as change-over contact
4
-
Rated short-time withstand current lcw
50
-
Rated permanent current Iu
1600
-
Rated operation power at AC-23, 400 V
710
-
Rated permanent current at AC-21, 400 V
1600
-
Rated permanent current at AC-23, 400 V
1250

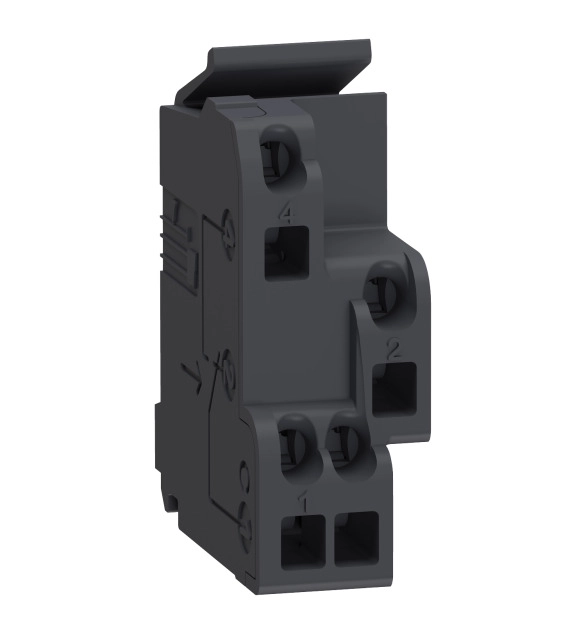

It is a single standard auxiliary contact that provides SD remote information of the circuit breaker status. The SD contact (trip indication) indicates that the circuit breaker has tripped. There is one auxiliary contact model for OF, SD or SDE information, depending on where it is fitted in the device. This auxiliary is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. Utilization categories are AC12/AC13/DC12/DC14. Compact NS 630b to 3200 can be equipped with 1 SD auxiliary contact. It complies with IEC 60947-5-1 standard.
